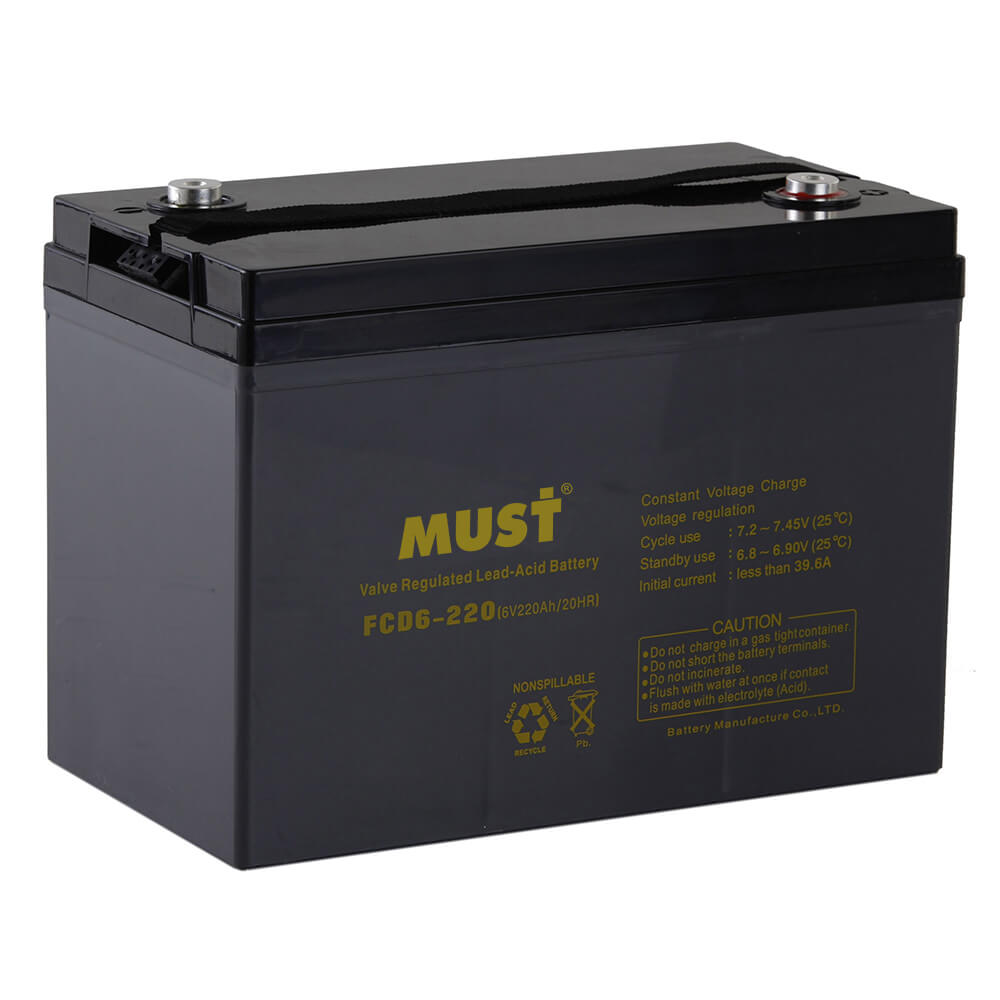

Deep Cycle AGM VRLA Battery FCD Series 6V,12V
MUST ENERGY is a specialist deep cycle battery manufacturer in China. We offer customers a wide range of AGM VRLA batteries. Due to prominent features and advantages, this power supply device has found great popularity in various application fields and obtained high recognition among users.
Features:
Product Features of Industrial Battery:
- The deep cycle battery comes with radial grid design and tight assembly technology which ensure excellent high rate discharge performance;
- Due to deep cycle design and 4BS technology, the service life of this absorbed glass mat battery is longer;
- Owing to unique grid alloy and special positive/negative lead paste formula, our deep cycle AGM battery boasts superior deep cycle performance and over discharge recovery capability;
- High purity raw materials ensure low self discharge;
- Gas recombination technology brings super high seal reaction efficiency. Therefore, no acid mist will be separated out and environment is thereby protected;
- This type of lead acid cell has safe and reliable sealing performance in that it boasts high reliable sealing technology;
Applications of AGM VRLA Battery:
- Solar energy and wind energy systems;
- Golf cart, wheelchairs and electric vehicles;
- Electric power tools;
- Other power fields.
Other Features:
- Voltage covers: 6V,12V
- Capacity: From 200/20HR to 260/20HR
- Deep Cycle Battery, AGM VRLA Battery mainly for Solar Power System

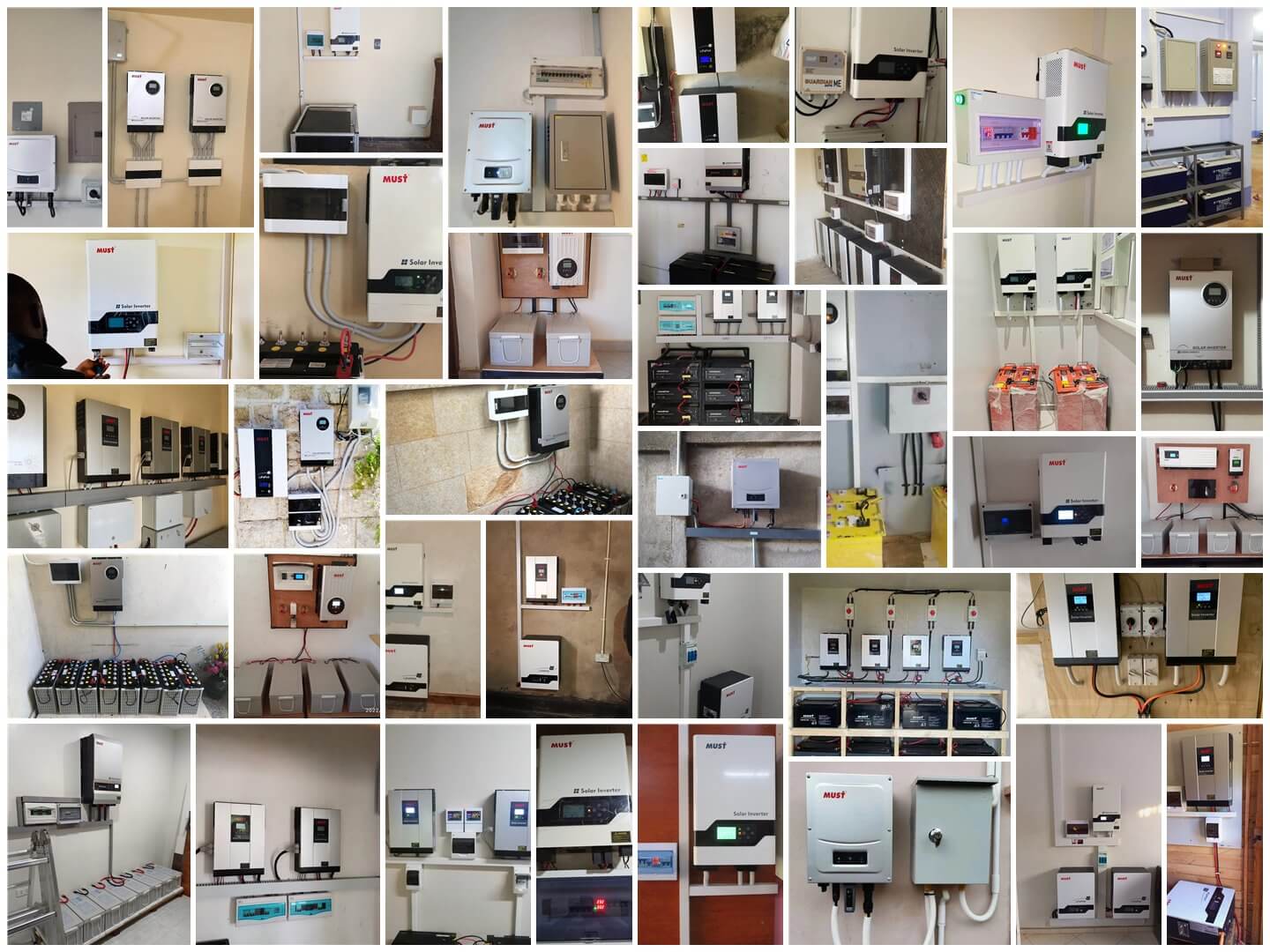

↓↓↓Installation Portfolio————
Specification
| Models | Nominal voltage (V) | Capacity (Ah) | Overall dimensions (mm) | Weight (kg ± 3%) | Terminal | Layout | Bolt | |||
| Length | Width | Height | Overall height | |||||||
| FCD6-200 | 6 | 200/20HR | 306 | 168 | 220 | 225 | 30 | T5 | F | M8×16 |
| FCD6-210 | 6 | 210/20HR | 260 | 180 | 247 | 252 | 29.5 | T5 | F | M8×16 |
| FCD6-220 | 6 | 220/20HR | 306 | 168 | 220 | 225 | 31.5 | T5 | F | M8×16 |
| FCD6-225 | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.5 | T5 | F | M8×16 |
| FCD6-310 | 6 | 310/20HR | 295 | 178 | 354 | 360 | 46 | T5 | F | M8×16 |
| FCD6-330 | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | T6 | F | M8×16 |
| FCD6-380 | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | T5 | F | M8×16 |
| FCD6-420 | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | T6 | F | M8×16 |
| FCD8-200 | 8 | 200/20HR | 260 | 182 | 295 | 301 | 39.0 | T5 | A | M8×16 |
| FCD12-14 | 12 | 14/20HR | 152 | 99 | 96 | 102 | 3.8 | F1/F2 | D | / |
| FCD12-20 | 12 | 20/20HR | 181 | 77 | 167 | 167 | 6 | T1 | B | M5×16 |
| FCD12-24 | 12 | 24/20HR | 166 | 175 | 126 | 126 | 8.3 | T2 | B | M6×16 |
| FCD12-26 | 12 | 26/20HR | 165 | 126 | 174 | 179 | 8.4 | T3 | B | M6×12 |
| FCD12-35 | 12 | 35/20HR | 196 | 130 | 155 | 167 | 10.5 | T3 | A | M6×16 |
| FCD12-40 | 12 | 40/20HR | 198 | 166 | 174 | 174 | 14.2 | T3 | B | M6×16 |
| FCD12-55 | 12 | 55/20HR | 229 | 138 | 208 | 212 | 16.0 | T3 | B | M6×16 |
| FCD12-70 | 12 | 70/20HR | 350 | 167 | 178 | 178 | 23.3 | T3 | B | M6×16 |
| FCD12-75 | 12 | 75/20HR | 260 | 169 | 211 | 215 | 25 | T3 | A | M6×16 |
| FCD12-85 | 12 | 85/20HR | 260 | 169 | 211 | 215 | 26.1 | T3 | A | M6×16 |
| FCD12-90 | 12 | 90/20HR | 307 | 169 | 211 | 216 | 28.2 | T3 | A | M6×16 |
| FCD12-100 | 12 | 100/20HR | 307 | 169 | 211 | 216 | 30.2 | T3 | A | M6×16 |
| FCD12-110 | 12 | 110/20HR | 331 | 176 | 214 | 220 | 33.3 | T4 | A | M8×16 |
| FCD12-120 | 12 | 120/20HR | 407 | 173 | 210 | 233 | 39.3 | T5 | A | M8×16 |
| FCD12-135 | 12 | 135/20HR | 341 | 173 | 283 | 288 | 40.8 | T5 | B | M8×16 |
| FCD12-150 | 12 | 150/20HR | 484 | 171 | 241 | 241 | 45.5 | T4 | A | M8×16 |
| FCD12-180 | 12 | 180/20HR | 532 | 206 | 216 | 222 | 56 | T4 | C | M8×16 |
| FCD12-200 | 12 | 200/20HR | 532 | 206 | 216 | 222 | 58.4 | T4 | C | M8×16 |
| FCD12-220 | 12 | 220/20HR | 522 | 240 | 219 | 225 | 64.0 | T5 | C | M8×16 |
| FCD12-240 | 12 | 240/20HR | 520 | 269 | 203 | 209 | 71 | T5 | C | M8×16 |
| FCD12-260 | 12 | 260/20HR | 520 | 268 | 220 | 226 | 77 | T5 | C | M8×16 |
