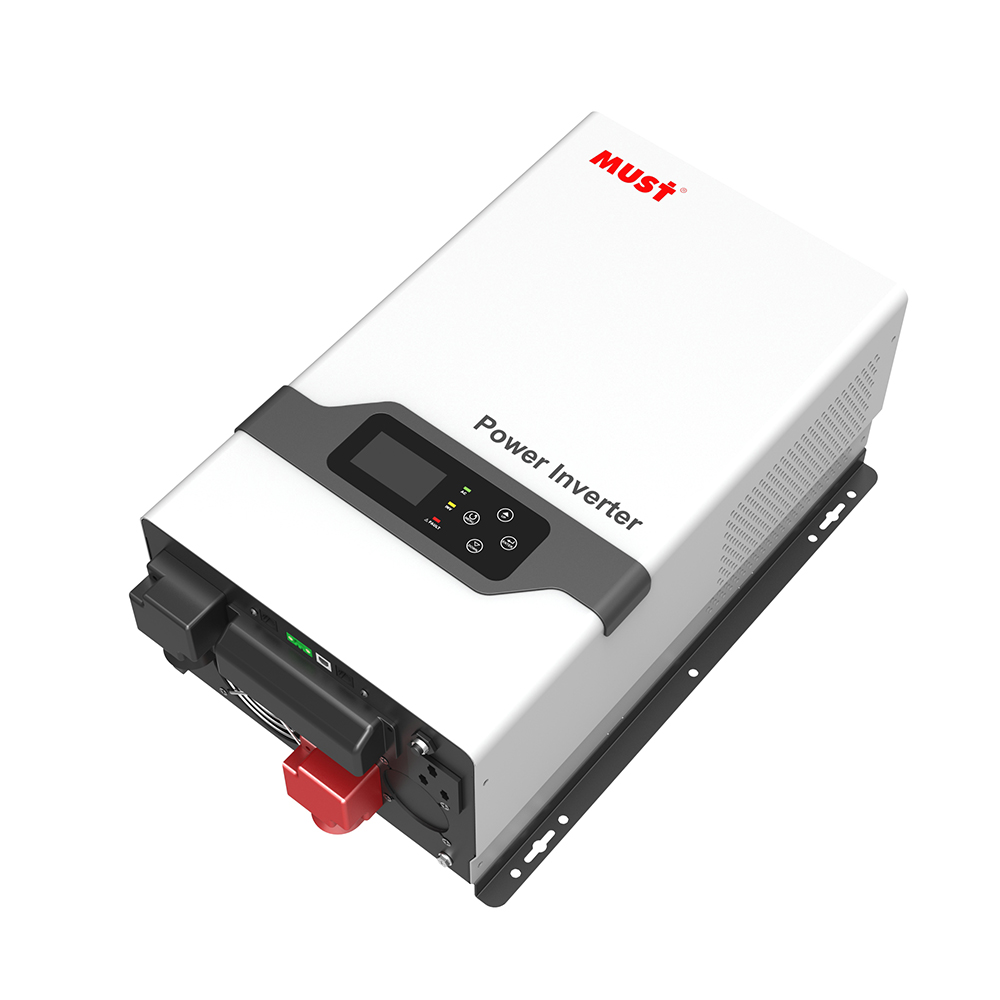

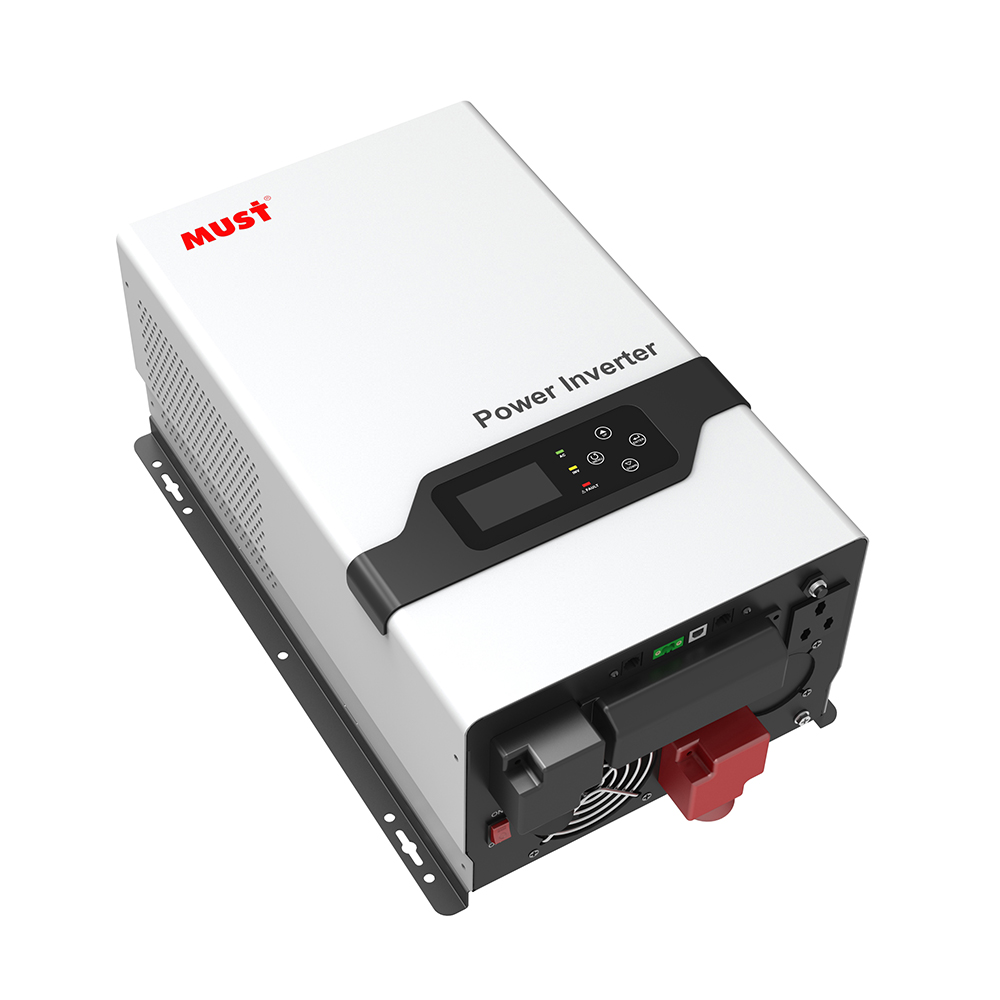

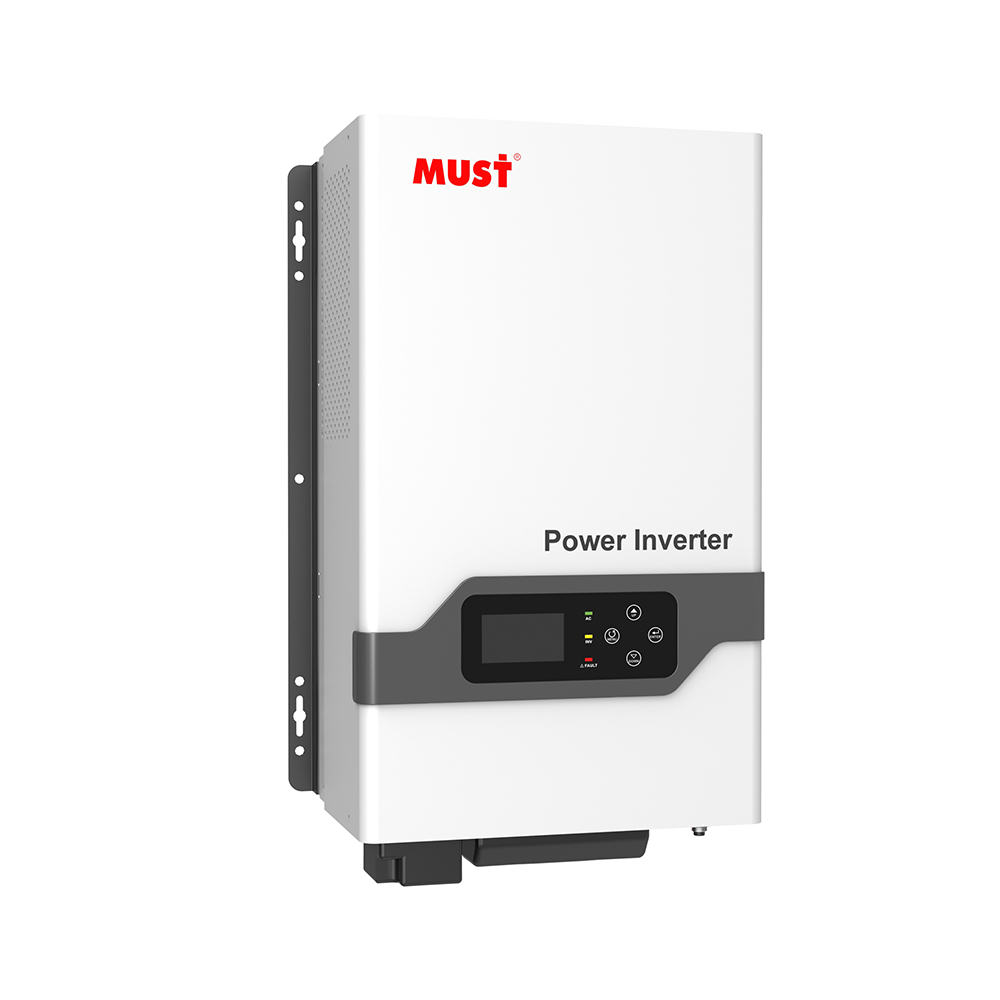

EP3000 PLUS Series Low Frequency Power Inverter/Charger (1-6KW)
EP3000 PLUS series is a very economical pure sine wave inverter, with AC charger from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower . With pure copper transformer, it enables inverter to operate with all kinds of home appliances.
Features:
- Pure sine wave output
- Friendly user interface
- 3 Steps charging
- MFD (multi-function display)
- Overload and short-circuit protection
- Set charging voltage/charging current.
- Battery low voltage shutdown point can be set to 10/10.5/11V
- Power-save mode
- Set utility priority/ Battery priority
- Set utility input wide/narrow range
- Inverter voltage can be set to 120V:110V/115V/120V ; 220V:220V/230V/240V
- Inverter frequency can be set to 50/60Hz
- Set utility charging on/off switch

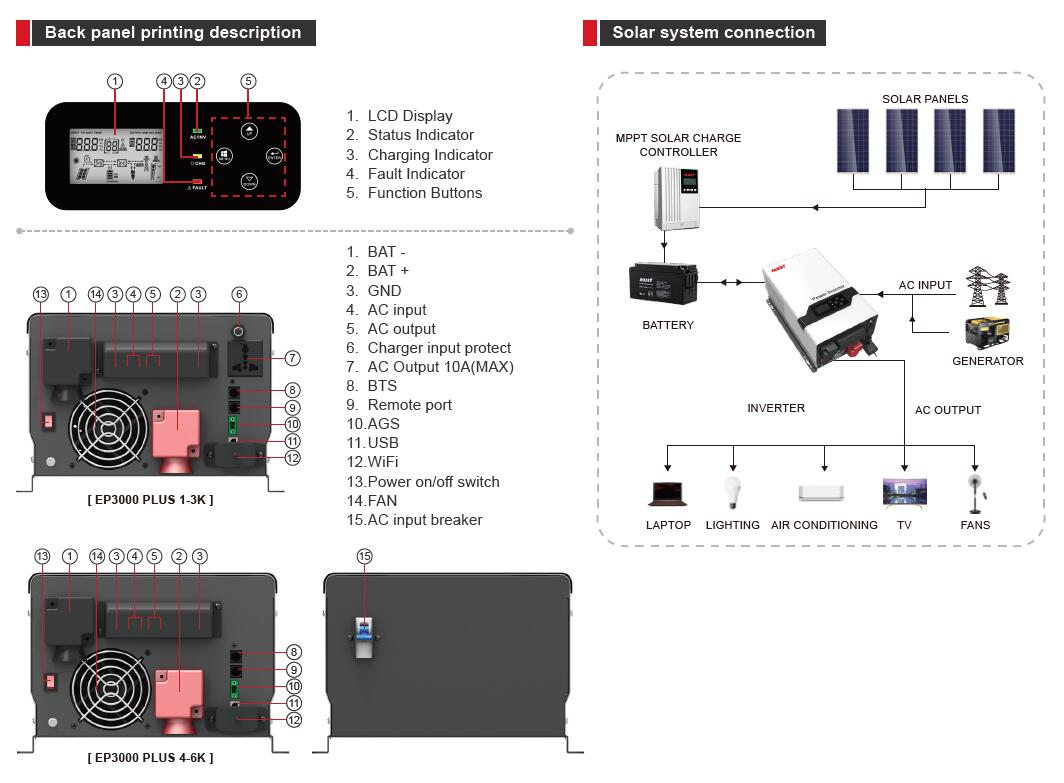

↓↓↓Installation Portfolio————
| MODEL | EP30-1KW PLUS | EP30-1.5KW PLUS | EP30-2KW PLUS | EP30-3KW PLUS | EP30-4KW PLUS | EP30-5KW PLUS | EP30-6KW PLUS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | |||||||||||||
| Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||
| Surge Rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | ||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 3HP | ||||||||
| Waveform | Pure sine wave / same as input (bypass mode) | ||||||||||||
| Nominal Output Voltage RMS | 220V / 230V / 240VAC ±10% (RMS) | ||||||||||||
| Output Frequency | 50Hz / 60Hz ±0.3Hz | ||||||||||||
| Inverter Efficiency (Peak) | >88% | ||||||||||||
| Line Mode Efficiency | >95% | ||||||||||||
| Power Factor | 1.0 | ||||||||||||
| Typical Transfer Time | 10ms(max) | ||||||||||||
| AC INPUT | |||||||||||||
| Voltage | 230VAC | ||||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For personal computers) | ||||||||||||
| Frequency Range | 50Hz / 60Hz(Auto sensing) 40~80Hz | ||||||||||||
| BATTERY | |||||||||||||
| Minimum Start Voltage | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||||
| Low Battery Alarm | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||||
| Low Battery Cut Off | 10V / 10.5V / 11V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||||
| High Voltage Alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||||
| High Battery Voltage Recover | (13.8-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||||||||||||
| Idie Consumption-Search Mode | Load ≤100±20W(220V) | ||||||||||||
| CHARGER | |||||||||||||
| Output Voltage | Depends on battery type | ||||||||||||
| Charge AC Input Breaker Rating | 230V | 1-1.5K/10A | 2-3K/30A | 4-6K/40A | |||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | ||||||||||||
| Maximum Charge Current | 30A | 20A | 45A | 25A | 60A | 30A | 40A | 20A | 60A | 30A | 35A | 40A | |
| BYPASS PROTECTION | |||||||||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||||||||
| Output Short Circuit Protection | Circuit breaker | ||||||||||||
| Bypass Breaker Rating | 230V | 1-3K/30A | 4-6K/40A | ||||||||||
| Max Bypass Current | 30A | ||||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||||
| Mounting | Wall Mount | ||||||||||||
| Dimensions (W*H*D) (mm) | 423*247*197 | 597*247*197 | |||||||||||
| Net Weight (Solar CHG)(kg) | 16.5 | 17 | 21.1 | 20 | 24.5 | 24.8 | 38.2 | 35.8 | 45 | 45 | |||
| Shipping Dimensions (W*H*D) (mm) | 585*387*322 | 758*387*322 | |||||||||||
| Shipping Weight (Solar CHG)(kg) | 19.3 | 20 | 24.1 | 22.8 | 27.5 | 27.5 | 42.3 | 40 | 49.3 | 49.3 | |||
| OTHER | |||||||||||||
| Operation Temperature Range | 0℃ to 40℃ | ||||||||||||
| Storage Temperature | -15℃ to 60℃ | ||||||||||||
| Audible Noise | 60dB MAX | ||||||||||||
| Display | LED+LCD | ||||||||||||
| Standard Warranty | 1 year, 2 or 3 years optional (IP20) | ||||||||||||
