Off Grid Solar Inverter
Off Grid Solar Inverter
GD Series(5-10kW)
Features:
- 1. Lithium battery auto-restart function
- 2. Utility charging voltage/PV charging voltage adjustable
- 3. Battery reverse connection protection with fuse switch
- 4. Support working without battery
- 5. High precision of output voltage, ±5%

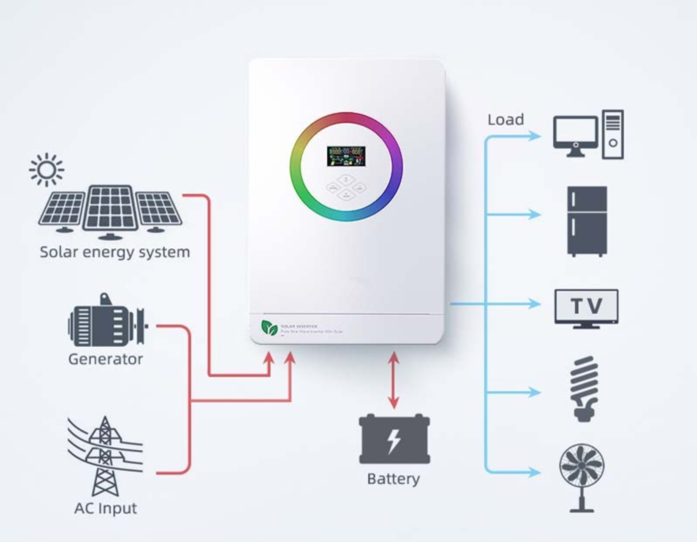

- 6. Intelligent power supply mode
- 7. Slim body, convenient installation and transportation
- 8. PF1.0, high efficiency, low consumption
- 9. Parallel function up to maximum 9 units
- 10. Can be connected to external WIFI
| Model | BA5048MH | BA10048MH |
| Rated Power | 5000W | 10000W |
| Peak Power | 10000VA | 20000VA |
| Input | ||
| Input Formation | L+N+PE | |
| Input Voltage | 220VAC | |
| Input Voltage Range | 1 54-264VAC±3V (Normal mode) | 185-264VAC±3V ( UPS mode) |
| Frequency | 50/60Hz±0.1% | |
| Output | ||
| Output Voltage | 208VAC / 220VAC / | 230VAC / 240VAC ±5% |
| Transfer Time | 10ms For Computer Equipment,20ms For Household Equipment | |
| Overload Ability (Battery Mode) | 1min@102%~110% Load10s@110%~130% Load3s@130%~150% Load 20 | |
| Peak Efficiency (Battery Mode) | > 94% | |
| Output Wave | Pure Sine Wave | |
| Battery | ||
| Rated Voltage | 48Vdc | |
| Constant Charging Voltage(Adjustable) | 56.4Vdc | |
| Float Charging Voltage (Adjustable) | 54Vdc | |
| Charge | ||
| Charging Method | MPPT | Dual MPPT |
| MAX PV Input Power | 5500W | 5500W+5500W |
| MAX PV Input Voltage | 500Vdc | 500Vdc |
| MAX PV Charge Current | 100A | 100A+100A |
| MAX AC Charge Current | 100A | 100A+100A |
| MAX Charge Current | 100A | 100A+100A |
| MPPT Tracking Range | 120~430Vdc | 120~450Vdc |
| Best Vmp Working Range | 300~340VdC | 370~340VdC |
| Display | ||
| LCD | Can display operating mode/load/in put/output | |
| Communication Port | ||
| R232 | 5PIN / Pitch2.0mm, Baud Rate2400 | |
| Expansion Slot | 2X5 PIN / Pitch2.54mm;Lithium Battery BMS Communication Card, WIFI Card, 2x5PIN/Pitch2.54mm | |
| Parallel interface | Support Parallel | Not Support Parallel |
| Ambient Factor | ||
| Operating Environment Humidity | 0~40°C ； | 20%~95% (Non Condensing) |
| Noise | ≤ 50db | |
| Storage Temperature | -15~60°C | |
| Ork Altitude | No more than 1000m, If 1000m<, Rate power will lower, MAX 4000m, Refer to IEC62040 | |
| Appearance | ||
| Dimension:L*W*H | 490*312*125mm | Packing Dimension:565*383*188mm |
| Weight (For reference) | Net Weight: 8.45kg | Net Weight: 11.56g |
| Gross Weight: 9.61 kg | Gross Weight: 13.45kg | |
| Standards | ||
| Standards and Certifications | EN-IEC 60335-1 , EN-IEC 60335-2-29 | |
