Off Grid Solar Inverter
Off Grid Solar Inverter

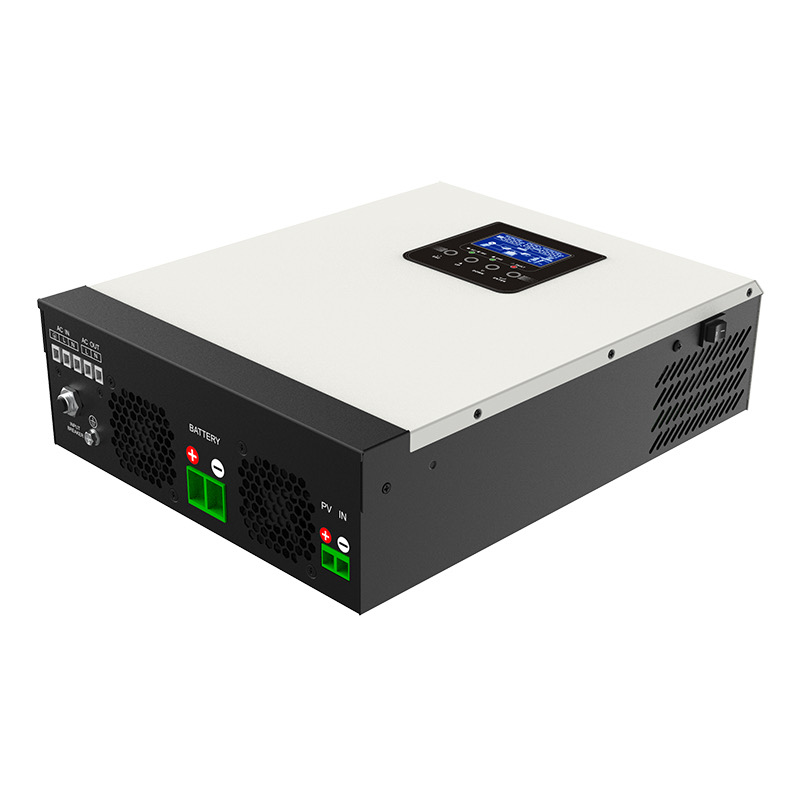

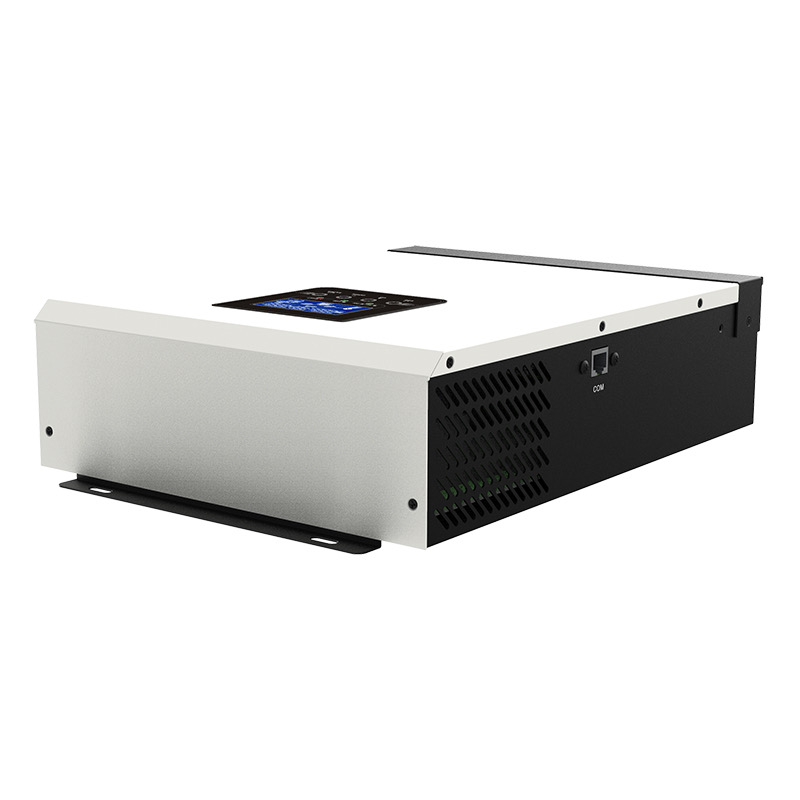

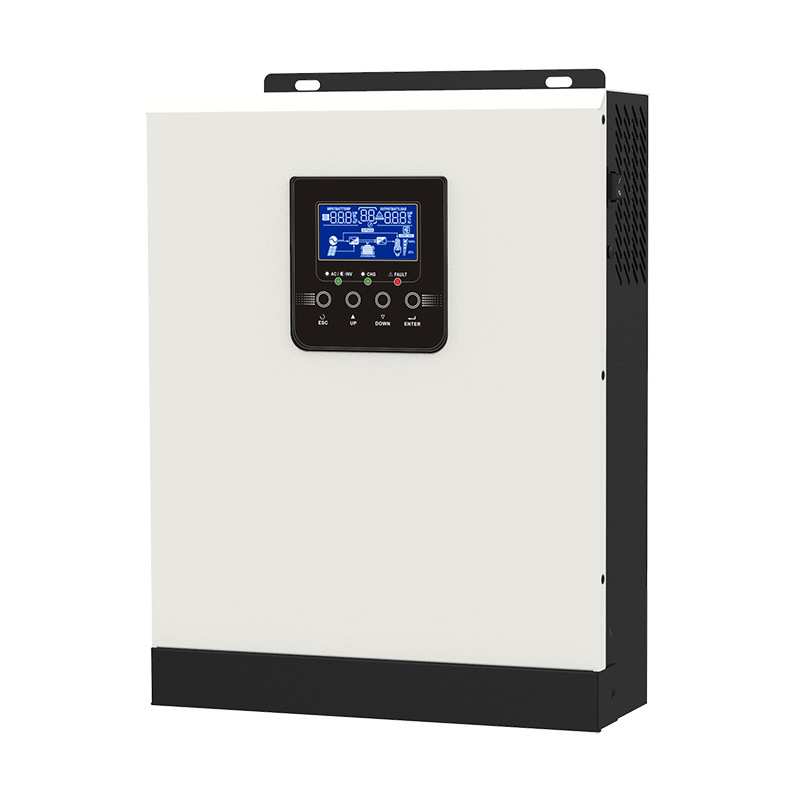

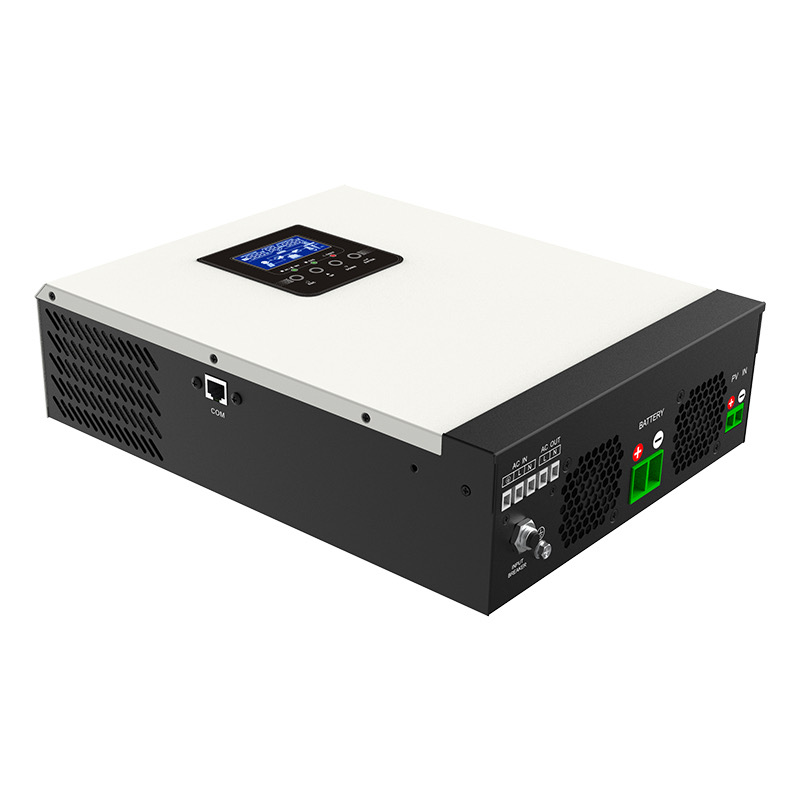

HMS Series(1.5-3kVA)
Features:
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
| MODEL | HMS 1.5K-12 | HMS 1.5K-24 | HMS 3K-24 |
| Rated Power | 1500VA/1200W | 3000VA/2400W | |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | ||
| Frequency Range | 50Hz/60Hz (Autosensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
| Surge power. | 3000VA | 6000VA | |
| Efficiency (Peak) | 90%-93% | 93% | |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | ||
| Waveform | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 12VDC | 24VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC |
| Overcharge Protection | 15.5VDC | 31VDC | 31VDC |
| Maximum charge current | 20A/30A | 10A/20A | 20A/30A |
| SOLAR CHARGER | |||
| Maximum Charging Current | 40A | 40A | 40A |
| Maximum PV Array Open Circuit Voltage | 102VDC | 102VDC | 102VDC |
| MPPT Range @ Operating Voltage | 15-80VDC | 30-80VDC | 30-80VDC |
| Standby Power Consumption | 2W | ||
| Maximum PV Array Power | 500W | 1000W | 1000W |
| Maximum Efficiency | 98% | ||
| PHYSICAL | |||
| Dimension. D*W*H(mm) | 305*300*110mm | 305*272*100mm | |
| Net Weight（kg） | 4.5kg | 6.9kg | |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | 0℃ to 55℃ | ||
| Storage Temperature | -15℃ to 60°C | ||
