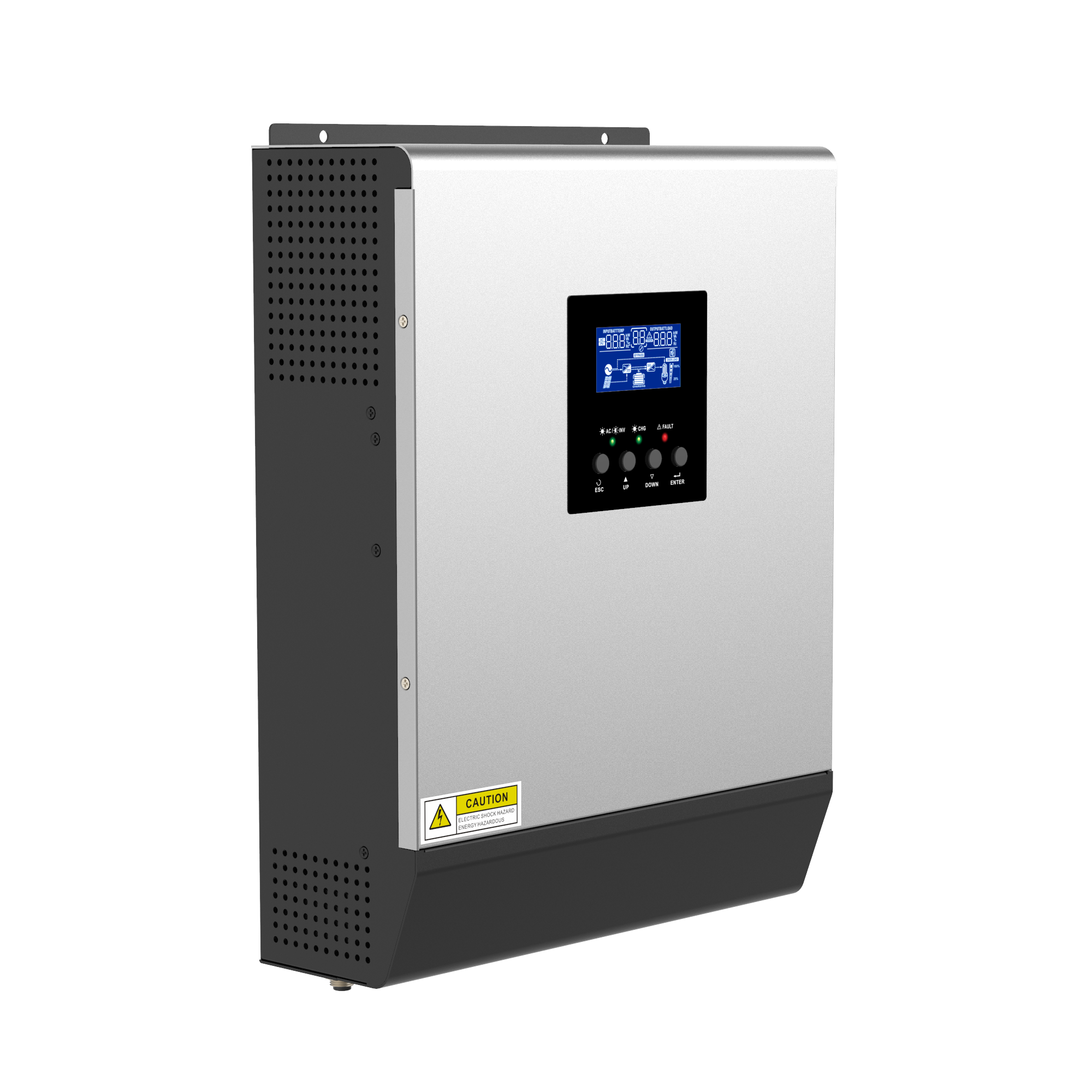

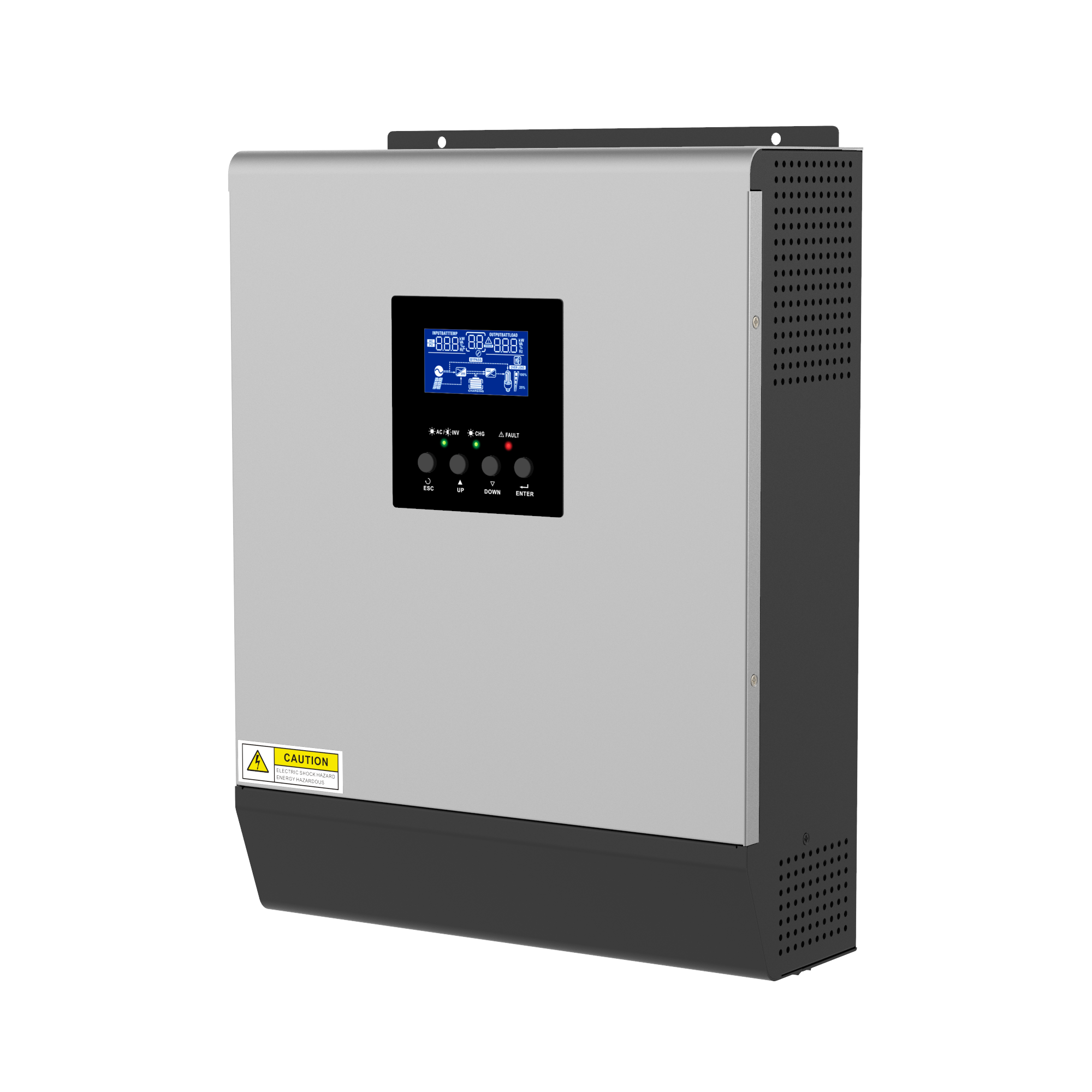

Off Grid Solar Inverter
Off Grid Solar Inverter
MPS Series(0.8-4kW)
LCD display Overview Connection
Features:
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- selectable input voltage range for home appliances and personal computers.
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- parallel operation with up to 6 units (30KVA) only
- Available for 5KVA

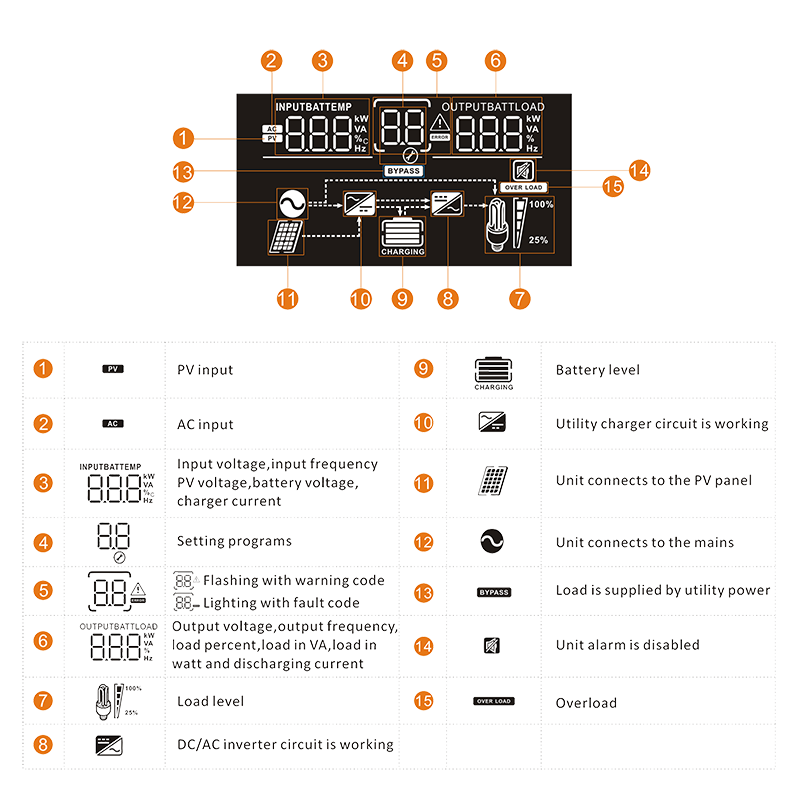

LCD display

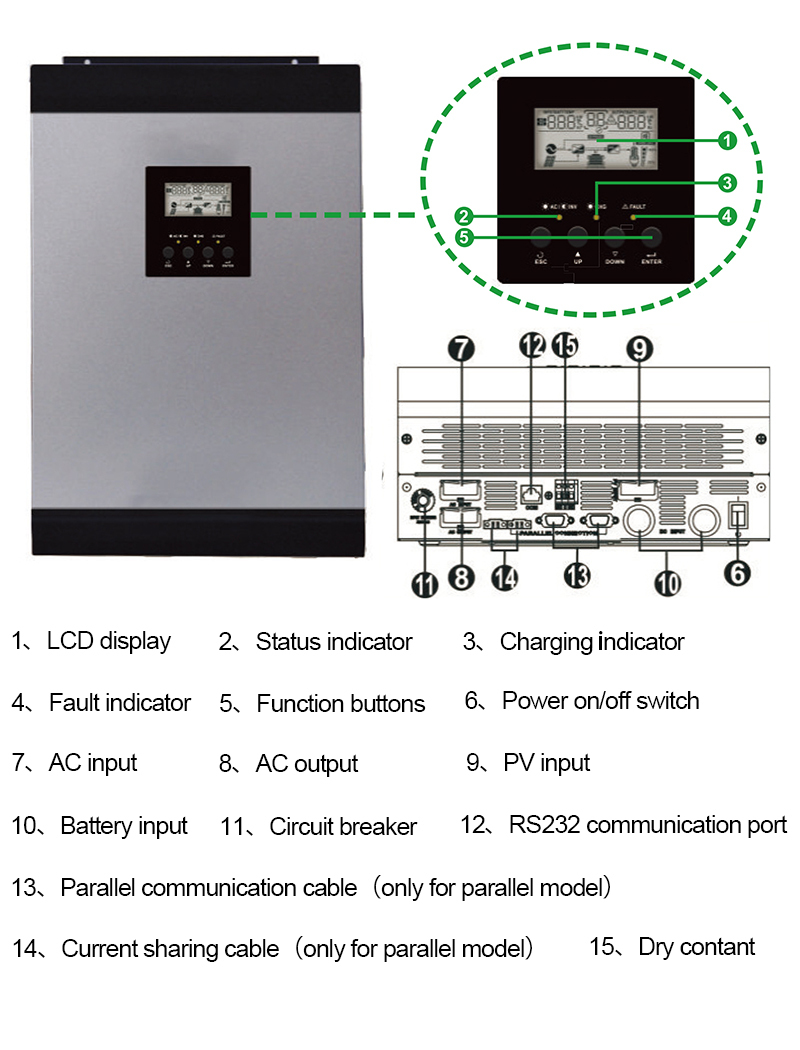

Overview

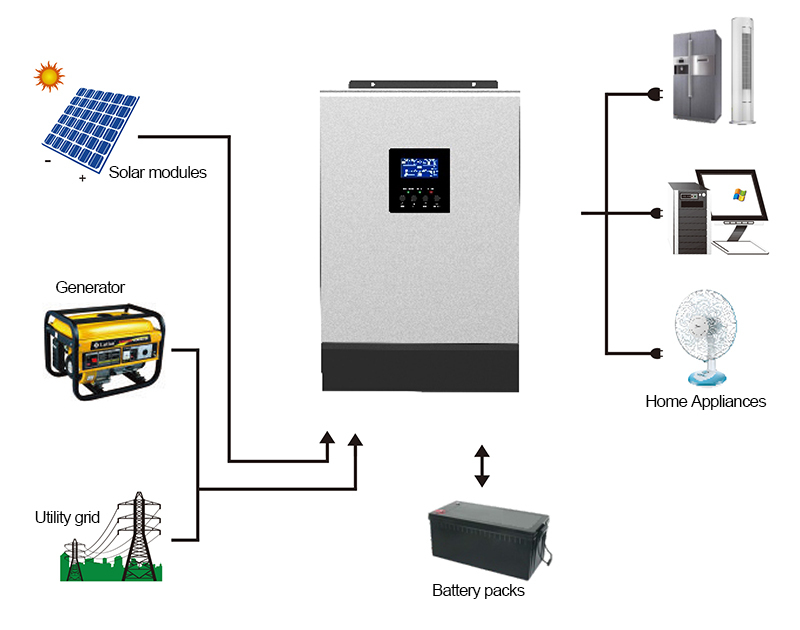

Connection
| MODEL | MPS 1K-24 | MPS 3K-24 | MPS 5K-48 | |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | |
| INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |||
| Frequency Range | 50Hz/60Hz (Autosensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |||
| Surge power | 2000VA | 6000VA | 10000VA | |
| Efficiency (Peak) | 90-93% | 93% | 93% | |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
| Wave form | Pure Sine Wave | |||
| BATTERY & ACCHARGER | ||||
| Battery Voltage | 24VDC | 24VDC | 48VDC | |
| Floating Charge Voltage | 27VDC | 27VDC | 54VDC | |
| Overcharge Protection | 31VDC | 31VDC | 60VDC | |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50A/60A | |
| SOLAR CHARGER | ||||
| MAX. PV Array Power | 1000W | 1000W | 1500W | 3000W/4000W |
| MPPT Range@ Operating Voltage | 30-66VDC | 30-66VDC | 30-115VDC | 60-115VDC |
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 145VDC | 145VDC |
| Maximum Charging Current | 40A | 40A | 60A | 60A/80A |
| Maximum Efficiency | 98% | |||
| Standby Power Consumption | 2W | |||
| PHYSICAL | ||||
| Dimension. D*W*H(mm) | 368*272*128 | 367.6*272 | 439*296*141 | 468*295*136 |
| Net Weight (kgs) | 7.4kg | 8.0kg | 10kg | 9.8kg |
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to9 5% Relative Humidity (Non-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15° to 60°C | |||
