Off Grid Solar Inverter
Off Grid Solar Inverter
MPS-V Series(3.2-5kW)
LCD display Connection
Features:
- High efficiency pure sine wave inverter (PF=1)
- Wide PV input range (120VDC-500VDC) 80A MPPT SCC；intelligent 3 stage 60A/80A AC charger
- Surges to 2X continuous power for 5 seconds for motor loads
- Intelligent functionality enables utility and solar input prioritization
- Wide utility input range (90VAC ~280VAC) for unreliable grid even
- In the most challenging environments
- Field serviceable with replacement boards and spare parts
- Monitor, troubleshoot or communication with USB/RS232
- System configures quickly into compact，wall-mount-ed system
- Working without batteries in sun day
- WIFI/GPRS Monitoring function (optional)

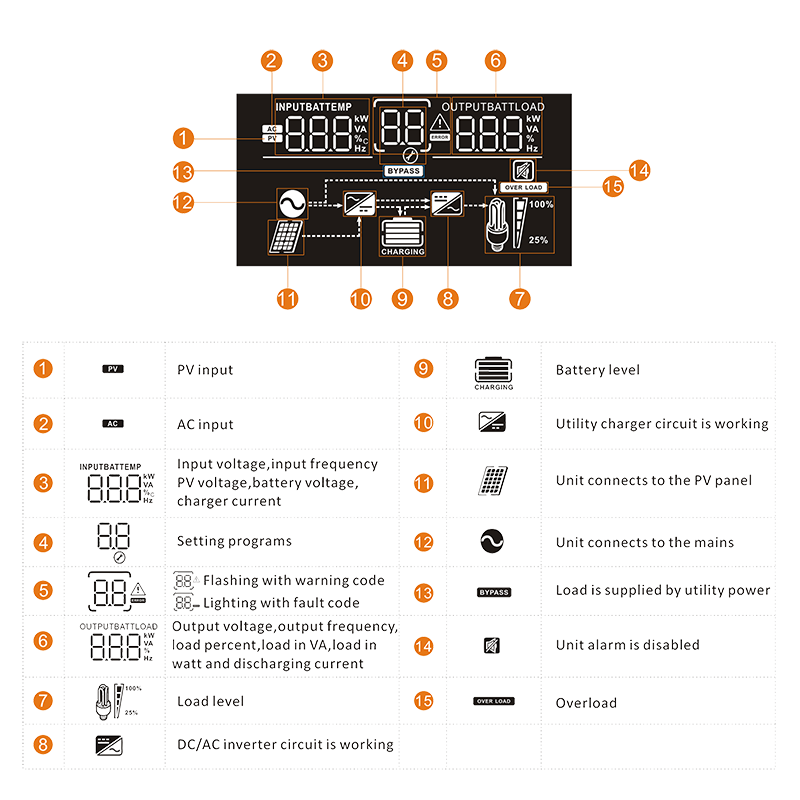

LCD display

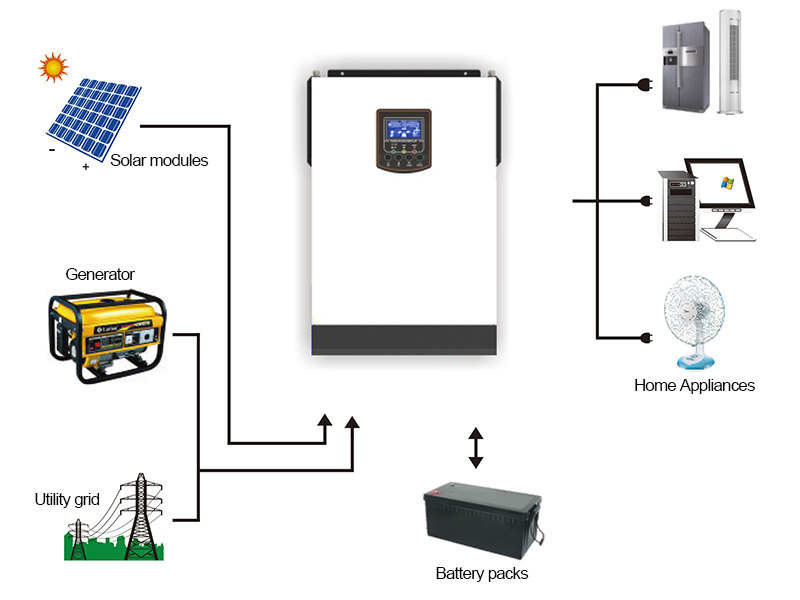

Connection
| MODEL | MPS-V-3200-24 | MPS-V-5000-48 |
| Rated Power | 3200VA/3200W | 5000VA/5000W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |
| Surge power | 6400VA | 10000VA |
| Efficiency (Peak)PV to INV | 97% | |
| Efficiency (Peak)BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum charge current | 80A | 60A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 4000W (5000W optional for 5KW model) | |
| MPPT Range@ Operating Voltage | 120-450VDC | |
| Maximum PV Array open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension. D*W*H(mm) | 440*300*100 | |
| Net Weight (kg) | 11kg | 12kg |
| Communication Interface | WIFI/GPRS (Optional) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0℃ to 5 ℃ | |
| Storage Temperature | -15℃ to 60℃ | |
