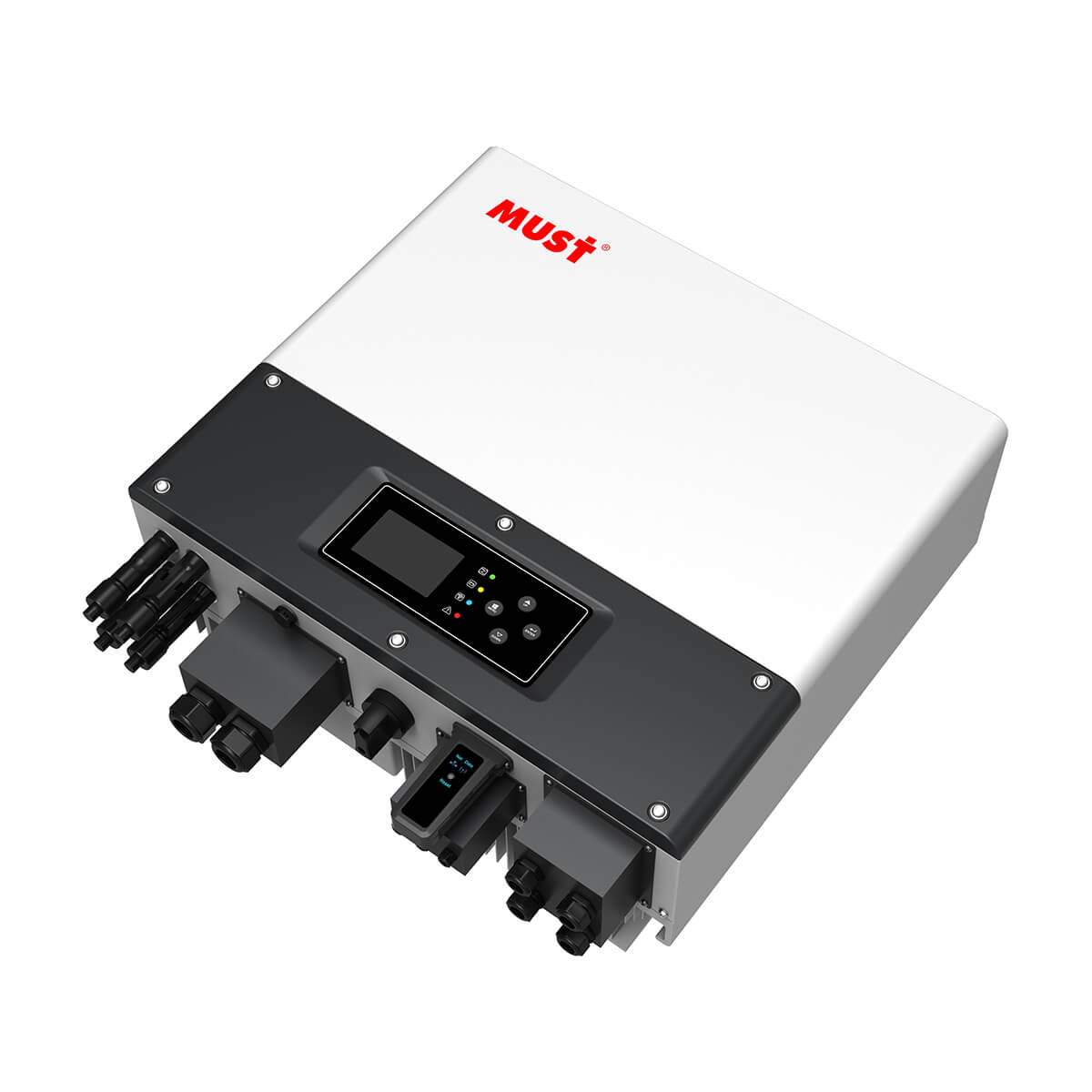

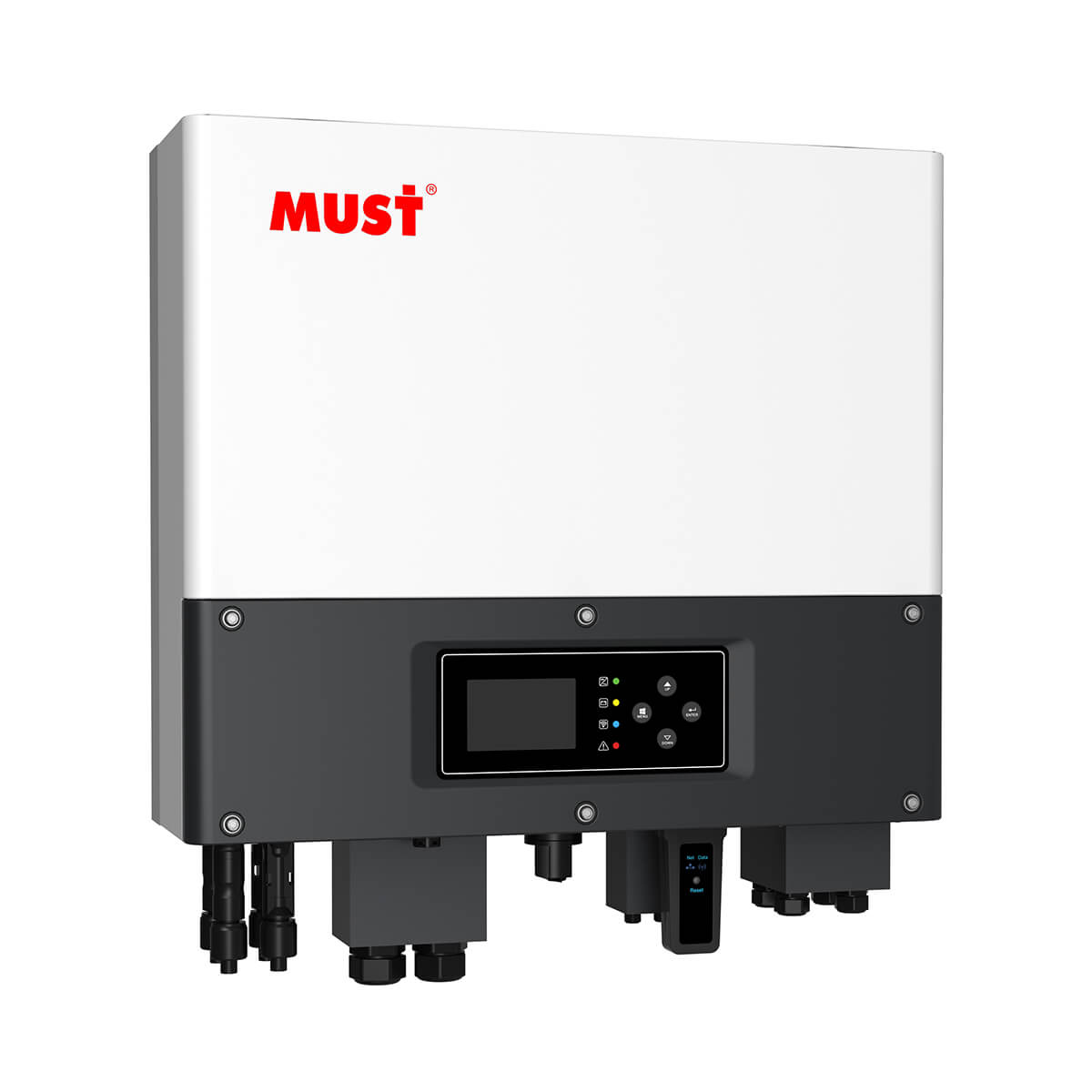

PH1100 PRO Series High Frequency Hybrid Solar Inverter (4-6KW)
PH1100 PRO Hybrid Solar Inverter is an excellent product that provides a sustainable and reliable solution for your energy needs. The product offers multiple operation modes, including Grid-tie and off-grid with storage backup, making it suitable for all types of energy requirements. Additionally, the product is rated IP65, which means it is both dust-proof and water-proof, ensuring a long-lasting and durable system.
Features:
- Wide range of MPPT voltage:120-500V
- Multiple operation modes: Grid-tie,off grid with storage backup
- Support LCD display&Smart LCD setting
- Available Export control CT sensor function
- Multiple communications:USB,RS485,GPRS and wifi etc
- Monitoring inverters freely via computers or mobile phones
- Full protection function:Over-voltage,over-frequency, over-current, over-temperature,and AC short-circuit automatic protection
- Intelligent BMS battery management function
- Fanless low-noise design
- IP65 Dust-proof and water-proof

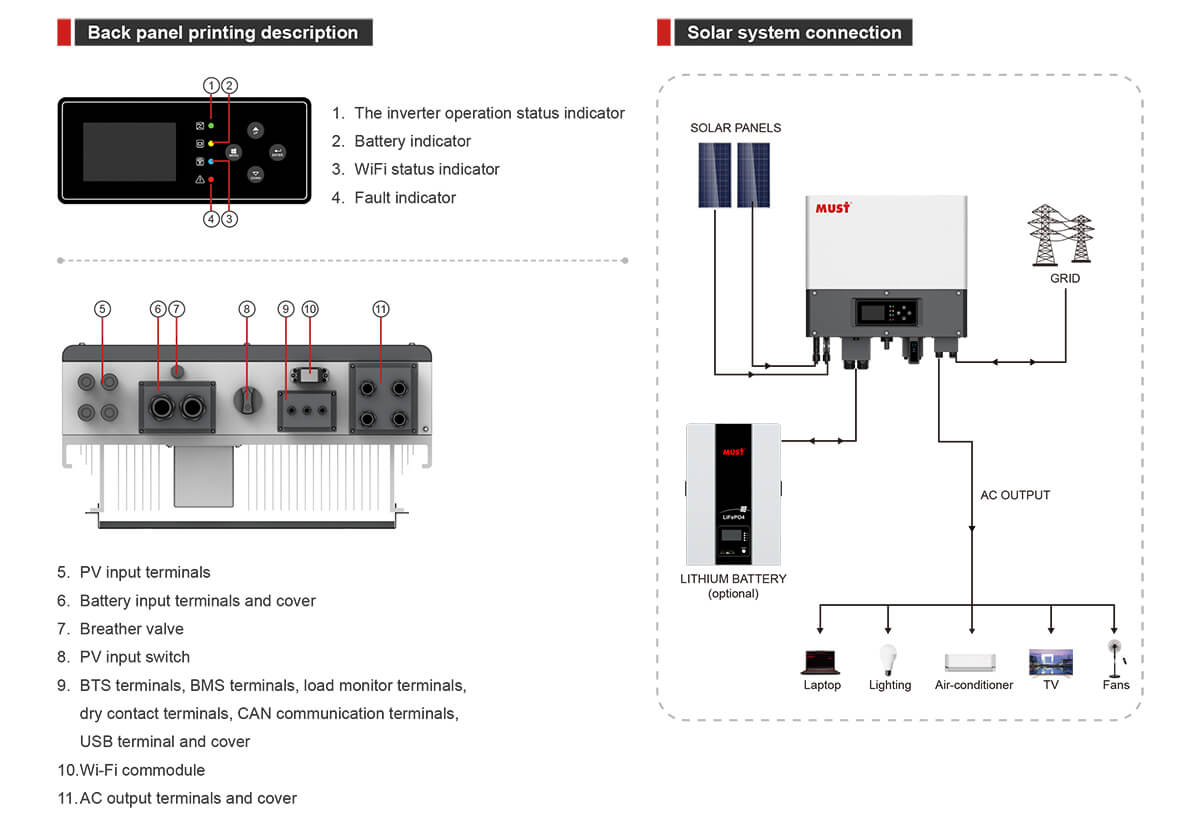

↓↓↓Installation Portfolio————
| MODEL | PH11-4048 PRO | PH11-5048PRO | PH11-6048 PRO |
|---|---|---|---|
| RATED POWER(W) | 4000 | 5000 | 6000 |
| Nominal Battery System Voltage(V) | 48 | ||
| PV INPUT(DC) | |||
| Maximum recommended DC power(W) | 5000 | 6000 | 7000 |
| Nominal DC operating voltage(V) | 360 | ||
| Maximum DC voltage(V) | 500 | ||
| MPPT voltage range(V) | 168~500 | 200~500 | 235~500 |
| Maximum input current(A) | 15 / 15 | ||
| No.of MPP tracker | 2 | ||
| Strings per MPP tracker | 1 | ||
| INVERTER OUTPUT(AC) | |||
| Nominal AC output power(W) | 4000 | 5000 | 6000 |
| Nominal output voltage(V);range(V) | 220/230/240;180-280 | ||
| AC grid frequency(Hz);range(Hz) | 50/60;45~55/55-65 | ||
| Nominal output current(A) | 17.5 | 21.7 | 26 |
| Maximum output current(A) | 18.1 | 22.7 | 27.2 |
| Inrush current (spike/duration) | 57.5A/5.2us | ||
| Total harmonic distortion i(THDi) | <3% | ||
| Power factor at rated power | 1 | ||
| Displacement power factor | 0.8leading ～ 0.8lagging | ||
| Grid type | Single phase | ||
| BATTERY MODE OUTPUT(AC) | |||
| Output Rated Power | 4000 | 5000 | 6000 |
| Nominal output voltage(V);accuracy range | 230±1% | ||
| Output ferequency(Hz);accuracy range | 50/60(optional)±0.2% | ||
| Output rated current(A) | 17.5 | 21.7 | 26 |
| Output waveform | Pure sine wave | ||
| Peak power(W) | 6000,10s | 7500,10s | 9000,10s |
| Total harmonic distortion v (linear load) | <3% | ||
| BATTERY & CHARGER | |||
| Battery type | Lead-acid battery / Lithium battery | ||
| Battery voltage(V) | 48 | ||
| Battery voltage range(V) | 40~60 | ||
| Charging curve | adaptive battery charging | ||
| Over-current protection / Over-temperature protection | Yes / Yes | ||
| Maximum charging power(W) | 4000 | 5000 | 6000 |
| Maximum charging currernt(A) | 85 | 100 | 125 |
| EFFICIENCY | |||
| Maximum efficiency | 97.1% | ||
| Euro-efficiency | 96.5% | ||
| MPPT efficiency | 99.8% | ||
| PROTECTION DEVICES | |||
| DC switch rating for each MPPT | Yes | ||
| Grid monitoring | Yes | ||
| Output over current protection | Yes | ||
| Output overvoltage protection-varistor | Yes | ||
| Ground fault monitoring | Yes | ||
| Integrated all-pole sensitive leakage current | Yes | ||
| GENERAL | |||
| Dimension(W/H/D)(mm) | 480*420*215 | ||
| Net weight (kg) | 27 | ||

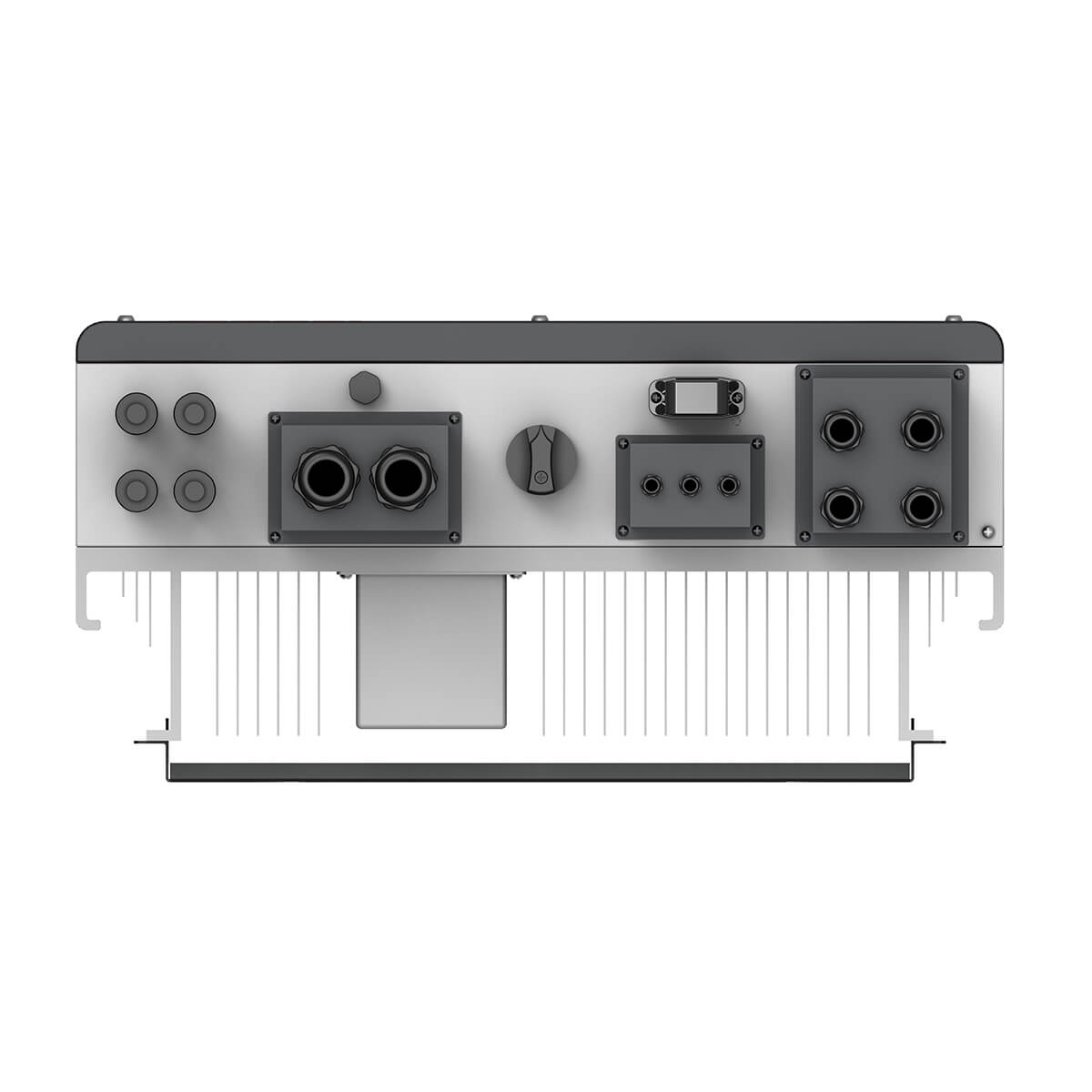

| DC connection | H4 / MC4 | ||
| AC connection | Terminal Block | ||
| Display | LED+LCD | ||
| Communication interfaces | Wi-Fi / USB / GPRS / RS485 | ||
| Ingress protection rating | IP65 | ||
| Humidity | 0~95% RH(No codensing) | ||
| Operating temperature range | -20℃ +60℃ With derating above 45℃ | ||
| Cooling concept | Natural | ||
| Altitude | <3000m | ||
