Off Grid Solar Inverter
Off Grid Solar Inverter
PS Series(0.8-4kW)
LCD display Overview Connection
Features:
- Pure sine wave inverter
- Built-in PWM solar charge controller
- Selectable input voltage range for home use
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Parallel operation with up to 6 units available for 5KVA

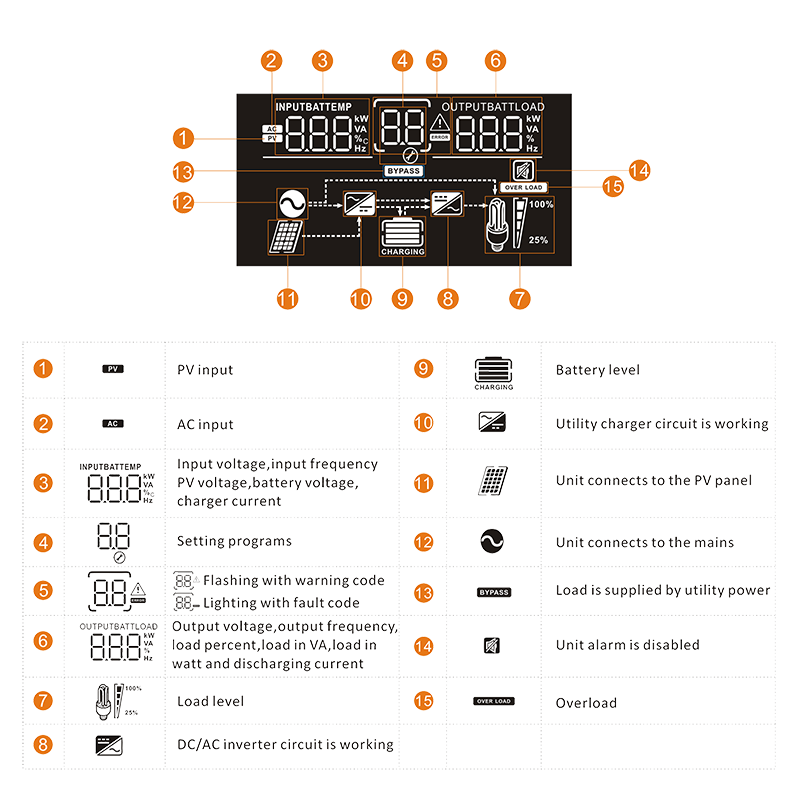

LCD display

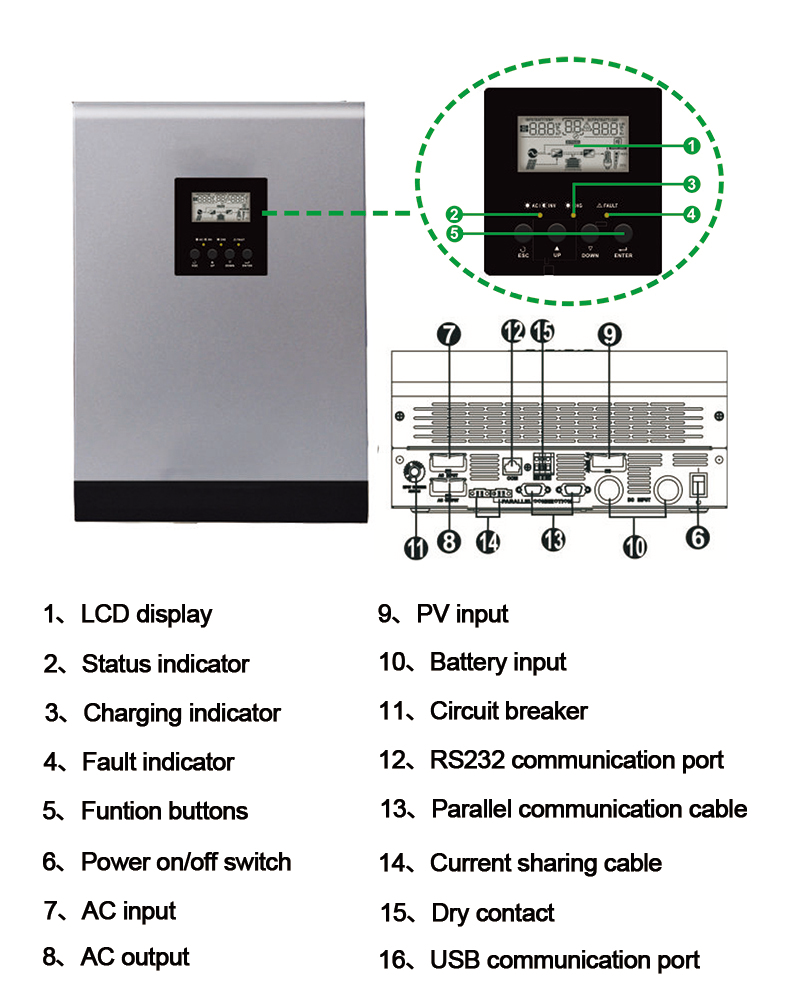

Overview

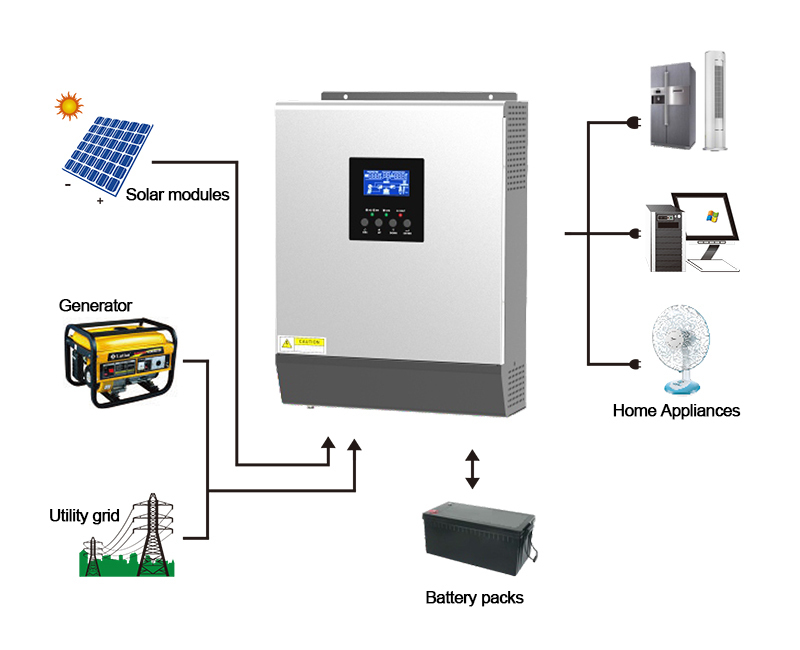

Connection
| MODEL | PS 1K-12 | PS 3K-24 | PS 5K-48 |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC（for personal computers） 90-280VAC（for home appliances） | ||
| Frequency Range | 50Hz/60Hz（Autosensing） | ||
| OUTPUT | |||
| AC Voltage Regulation（Batt. Mode） | 230VAC+5% | ||
| Surge power | 2000VA | 6000VA | 10000VA |
| Efficiency（Peak） | 90% | 93% | 93% |
| Transfer Time | 10ms（for personal computers） 20ms（for home appliances） | ||
| Waveform | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15.0VDC | 30VDC | 60VDC |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50AV60A |
| SOLAR CHARGER & AC CHARGER | |||
| Charging Current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 40VDC | 80VDC | 105VDC |
| PV Range @ Operating Voltage | 15-18VDC | 30-32VDC | 60-72VDC |
| Standby Power Consumption | 1W | 2W | 3W |
| PHYSICAL | |||
| Dimension. D*W*H(mm) | 240*327.6*110 | 368*272*100 | 467*295*120 |
| Net Weight（kg） | 4.5kg | 6.9kg | 9.8kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity（Non-condensing） | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||
