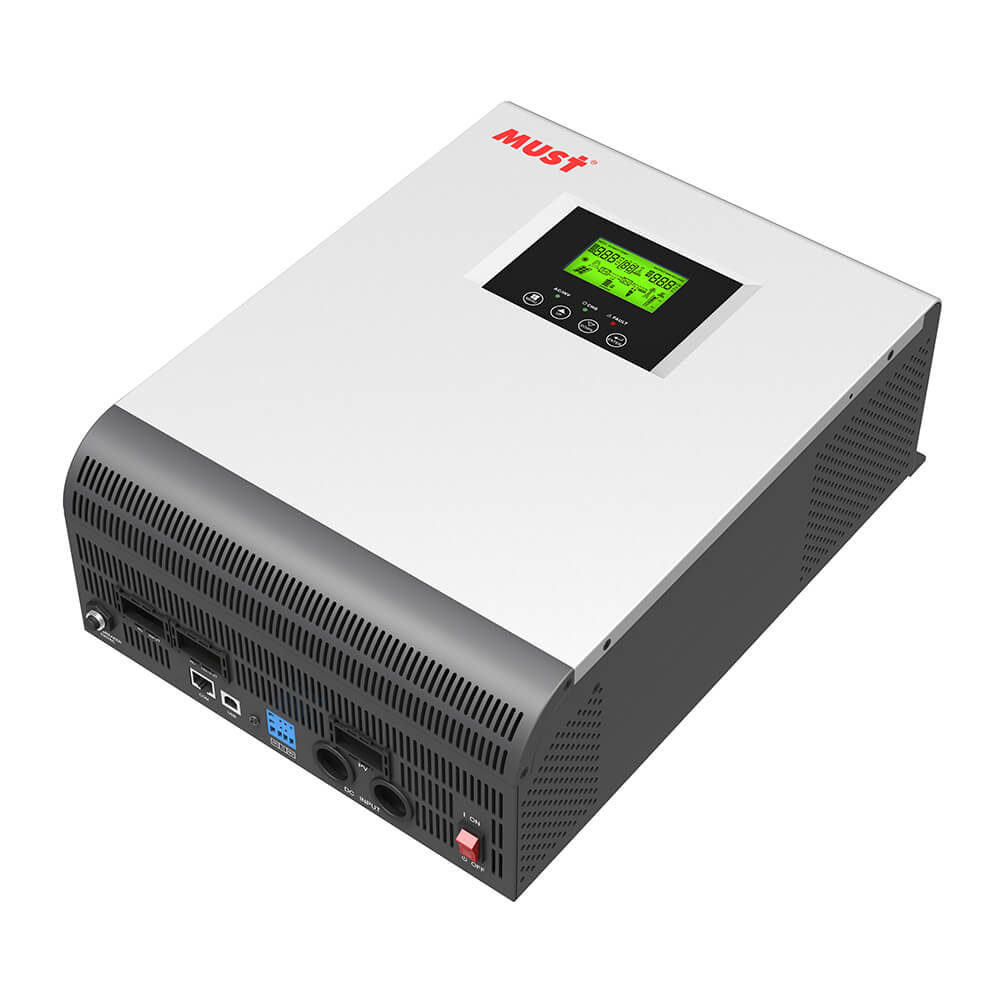

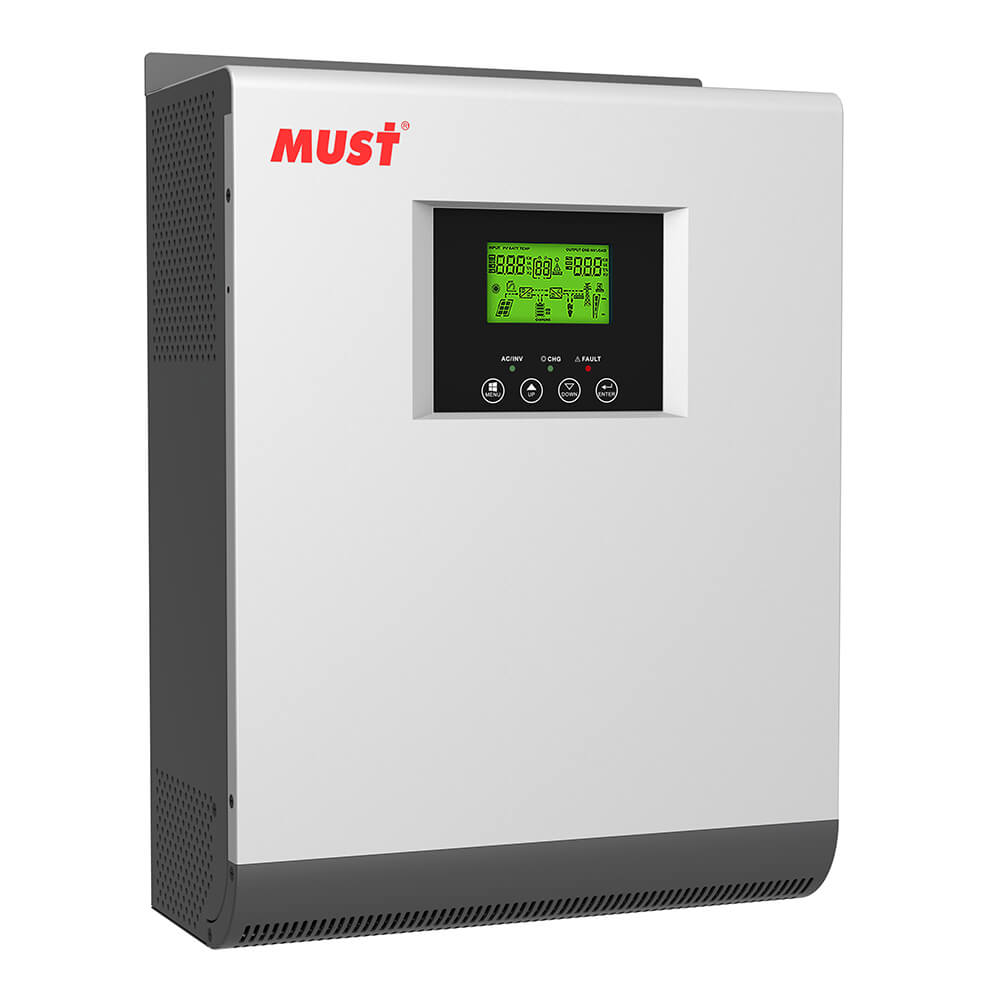

PV1800 LHM Series High Frequency Off Grid Solar Inverter (AC:120V 3KW)
PV1800 LHM Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave solar inverter
- Output power factor 1
- Built-in 80A MPPT solar charger
- Built-in anti-dusk kit for harsh environment
- Support parallel operation up to 3 units (Parallel in single phase)
- WIFI remote monitoring (optional)
- Compatible to generator

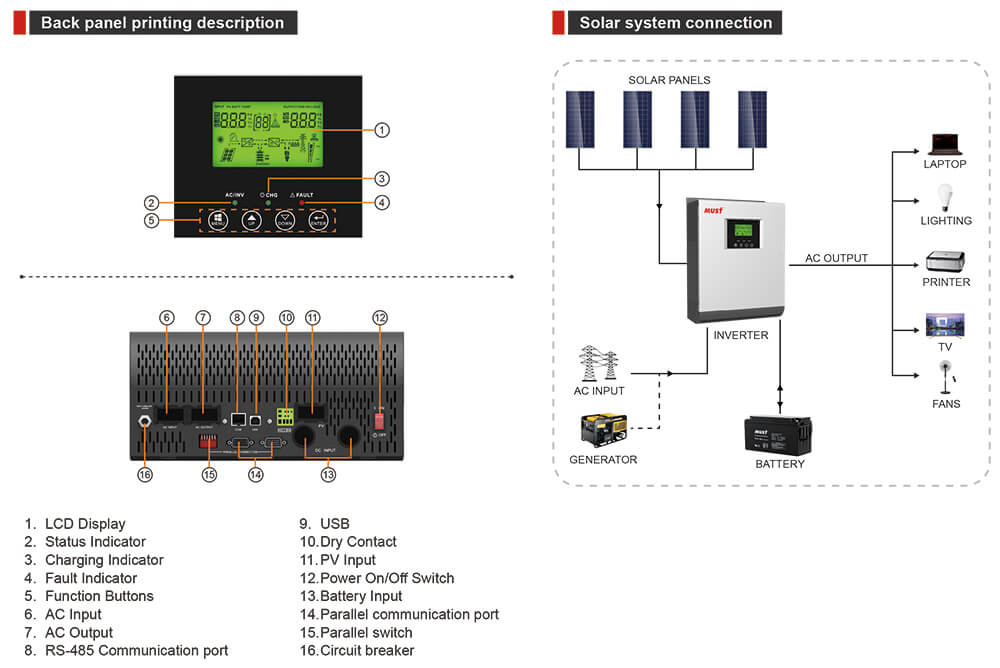

↓↓↓Installation Portfolio————
| MODEL | PV18-3048 LHM |
|---|---|
| Nominal Battery System Voltage | 48VDC |
| INVERTER OUTPUT | |
| Rated Power | 3000W |
| Surge Power | 6000W |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | (100VAC ~ 120VAC)±5% |
| Inverter Efficiency(Peak) | 93% |
| Transfer Time | 10ms (UPS / UL) 20ms (APL) |
| AC INPUT | |
| Voltage | 120VAC |
| Selectable Voltage Range | 90~145VAC(UPS), 60~145VAC(APL), 107~132VAC(VDE4105) |
| Frequency Range | 50Hz / 60Hz(Auto sensing) |
| BATTERY | |
| Normal voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| PV Array MPPT Voltage Range | 60-130VDC |
| Standby Power Consumption | 2W |
| PV Input Power | 2880W/3840W |
| Maximum Solar Charge Current | 80A |
| Maximum Efficiency | 98% |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 140A |
| MECHANICAL SPECIFICATIONS | |
| Machine Dimensions (W*H*D) | 309*505*147mm |
| Package Dimensions (W*H*D) | 618*415*261mm |
| Net Weight(kg) | 13.3kg |
| Gross Weight(kg) | 16.4kg |
| OTHER | |
| Humidity | 5% to 95% Relative humidity (Non-condensing) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -15℃ ~60℃ |
