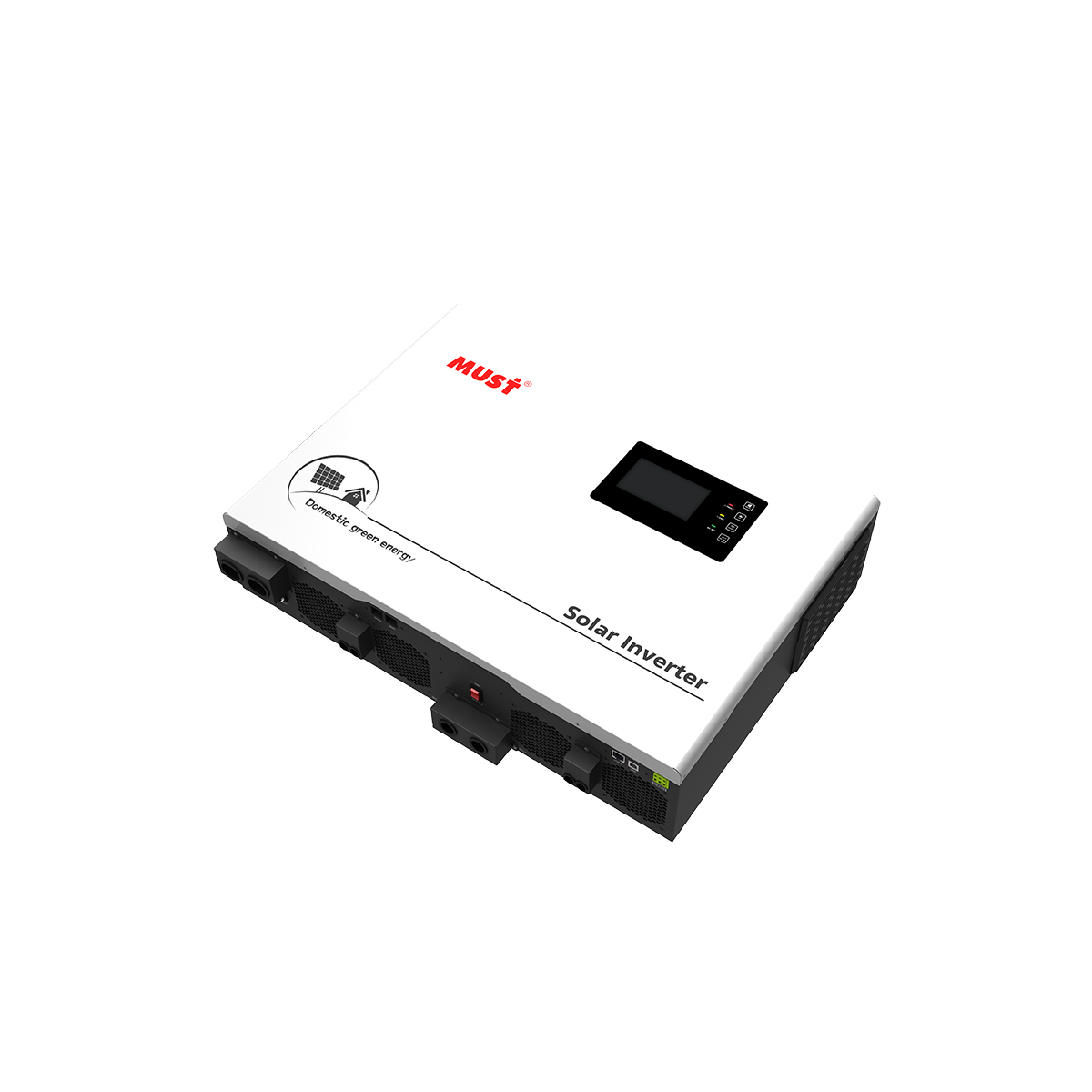

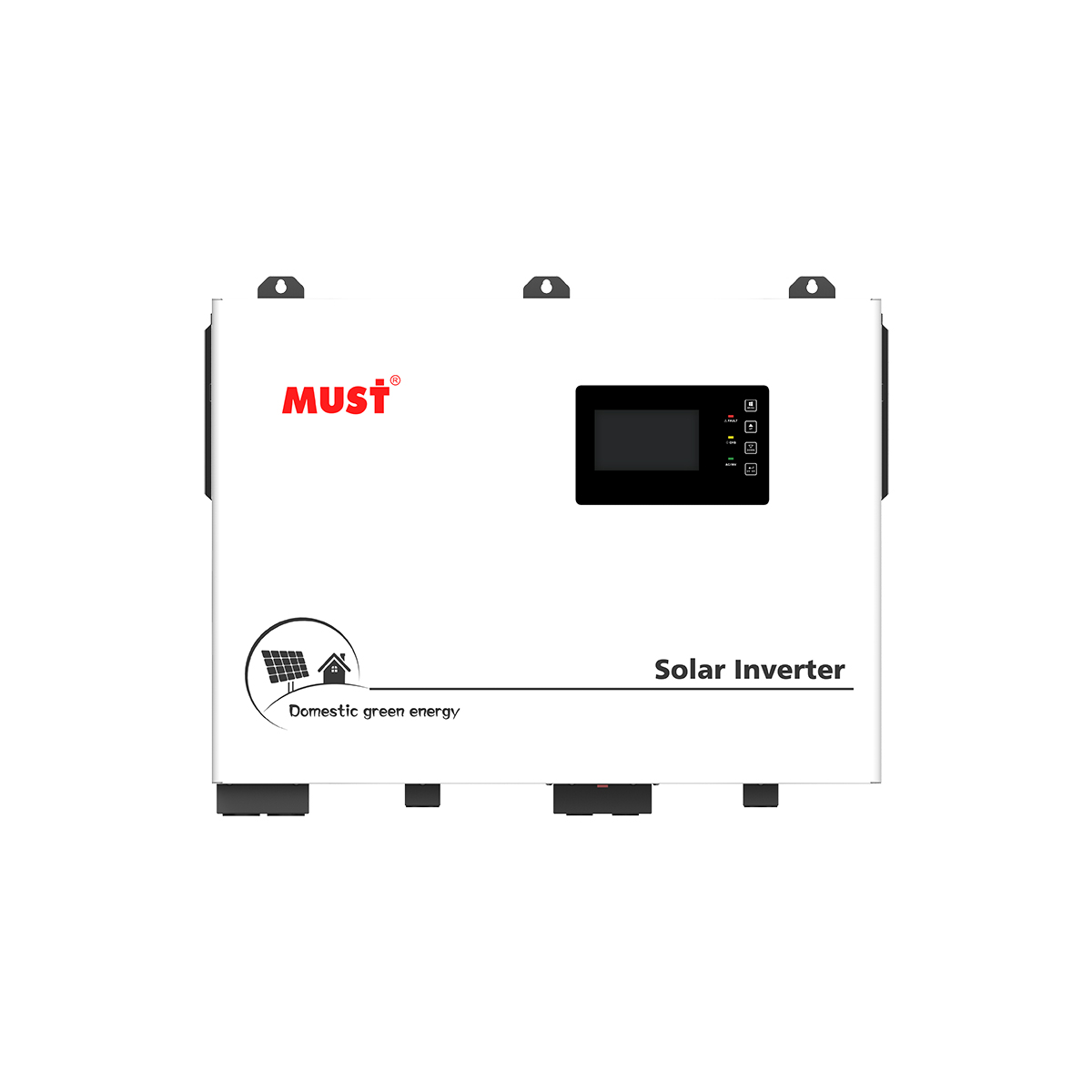

PV1800 PRO Series High Frequency Off Grid Solar Inverter (8/10KW)
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave inverter
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload/ Over temperature/ short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- WiFi remote monitoring (optional)

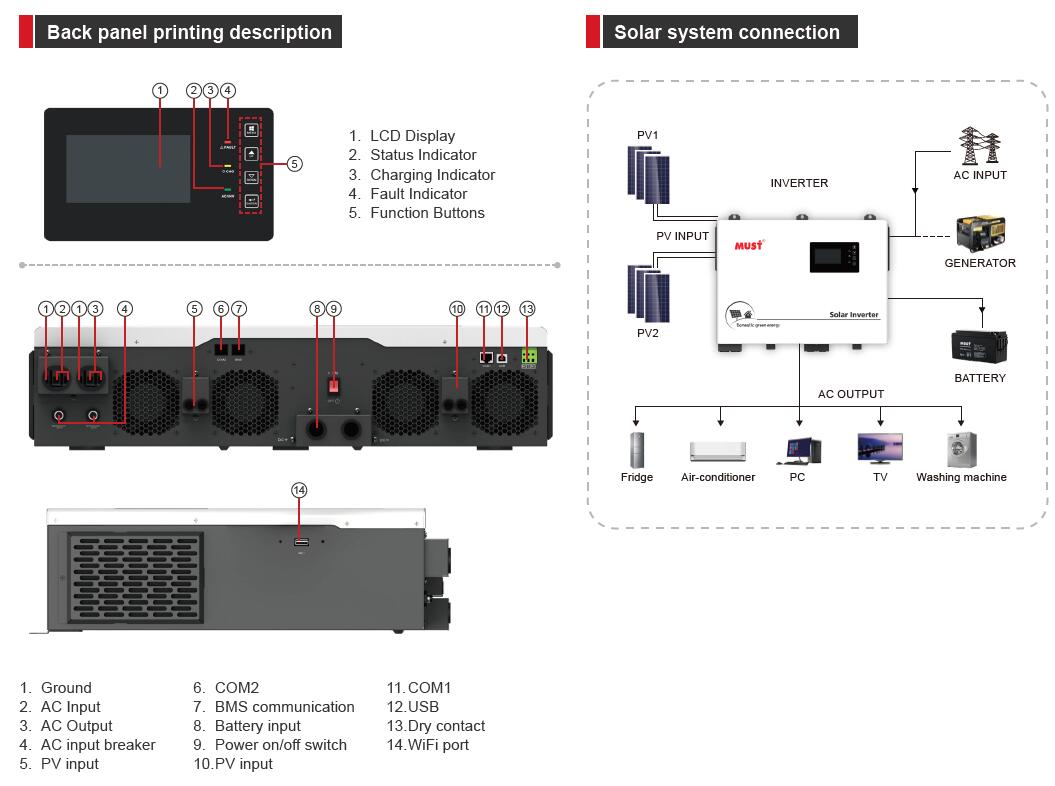

↓↓↓Installation Portfolio————
| MODEL | PV18-8048 PRO | PV18-10048 PRO |
|---|---|---|
| Nominal Battery System Voltage | 48VDC | |
| INVERTER OUTPUT | ||
| Rated Power | 8000W | 10000W |
| Surge Power | 16000W | 20000W |
| Waveform | Pure Sine Wave | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |
| Output Frequency | 60Hz or 50Hz | |
| Inverter Efficiency(Peak) | 90% | |
| Transfer Time | 10ms (UPS) 20ms (APL) | |
| AC INPUT | ||
| Nominal Input Voltage | 230VAC | |
| Max AC Input Voltage | 300VAC | |
| Selectable Voltage Range | 170~280VAC (UPS) / 90~280VAC (APL) / 184~253VAC(VDE4105) | |
| Frequency Range | 50Hz / 60Hz(Auto detection) | |
| SOLAR CHARGER & AC CHARGER | ||
| AC Charging Current | 2-120A | 2-160A |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| PV Array Open Circuit Voltage | 150-430VDC | |
| Cold Start Voltage | 46VDC | |
| Solar Charging Current | 80A/80A | 100A/100A |
| Default Charging Current | 80A/80A | |
| Maximum Charge Current | 80A/80A | 100A/100A |
| Charging Algorithm | 3-step (Flooded Battery / AGM / GEL/ LEAD Battery), 4-step(LI) | |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimension (W*H*D) | 600*503*141.2mm | |
| G.W (kg) | 21kg | |
| OTHER | ||
| Safety Certification | CE | |
| Operating Temperature | -10°C~50°C | |
| Storage Temperature | -15°C ~60°C | |
