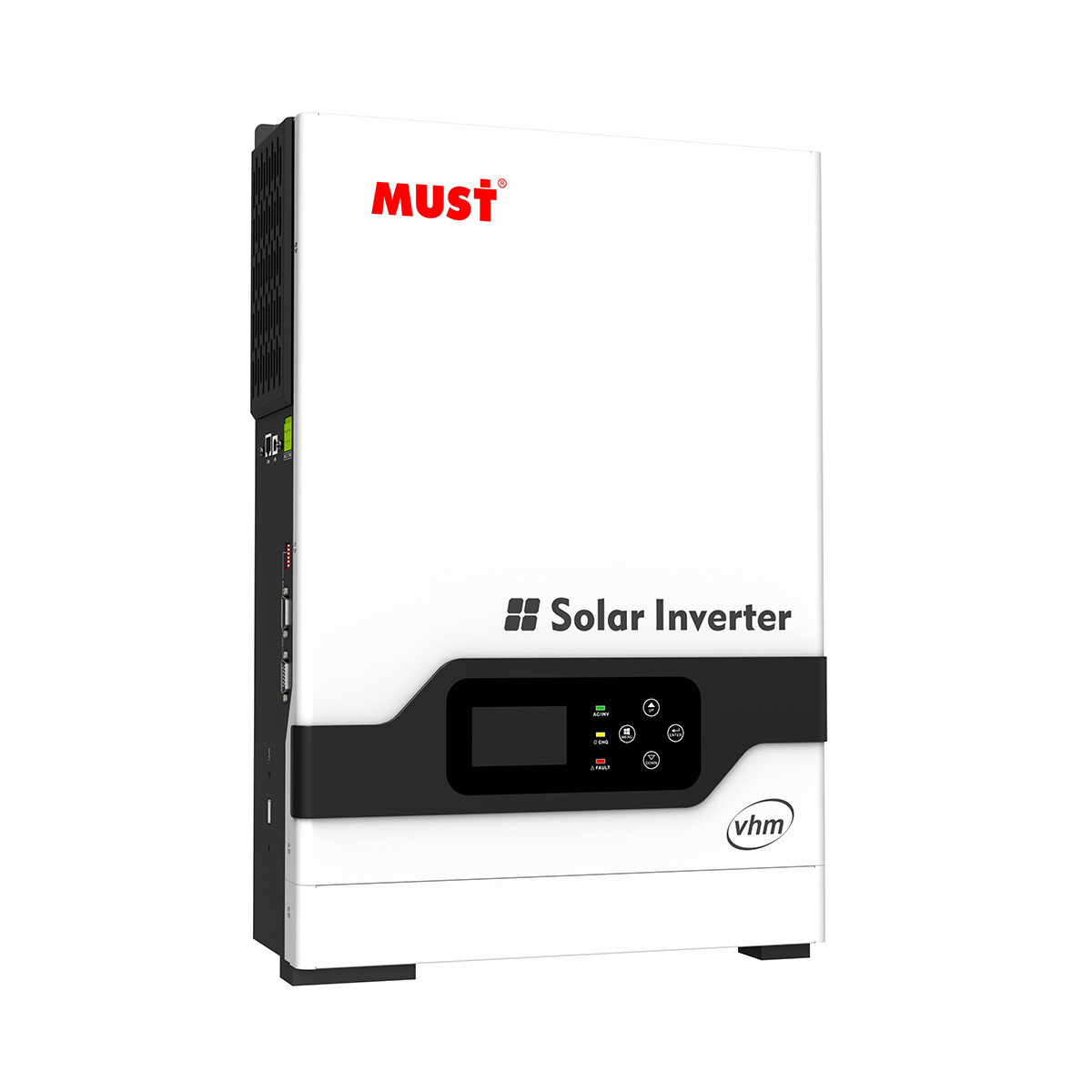

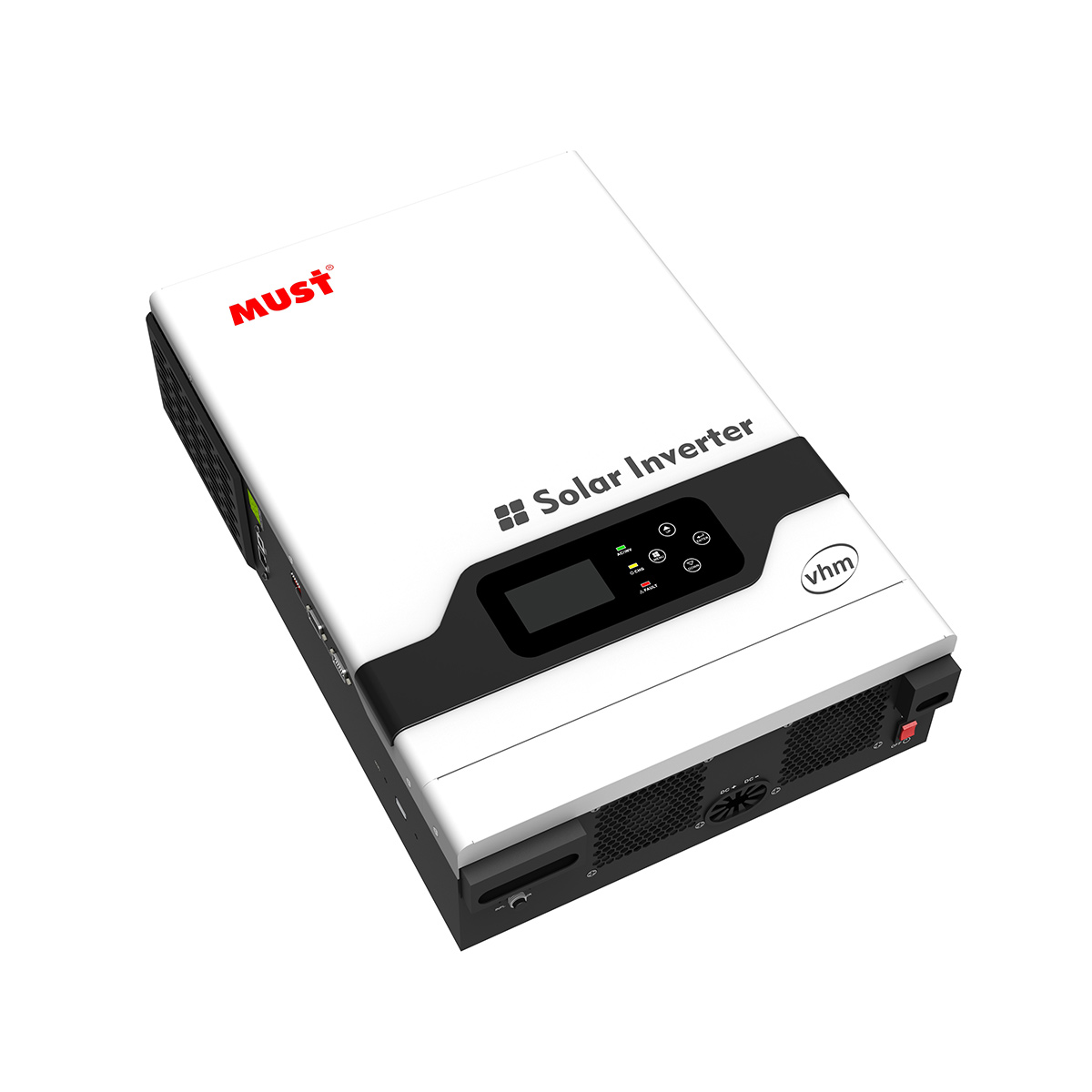

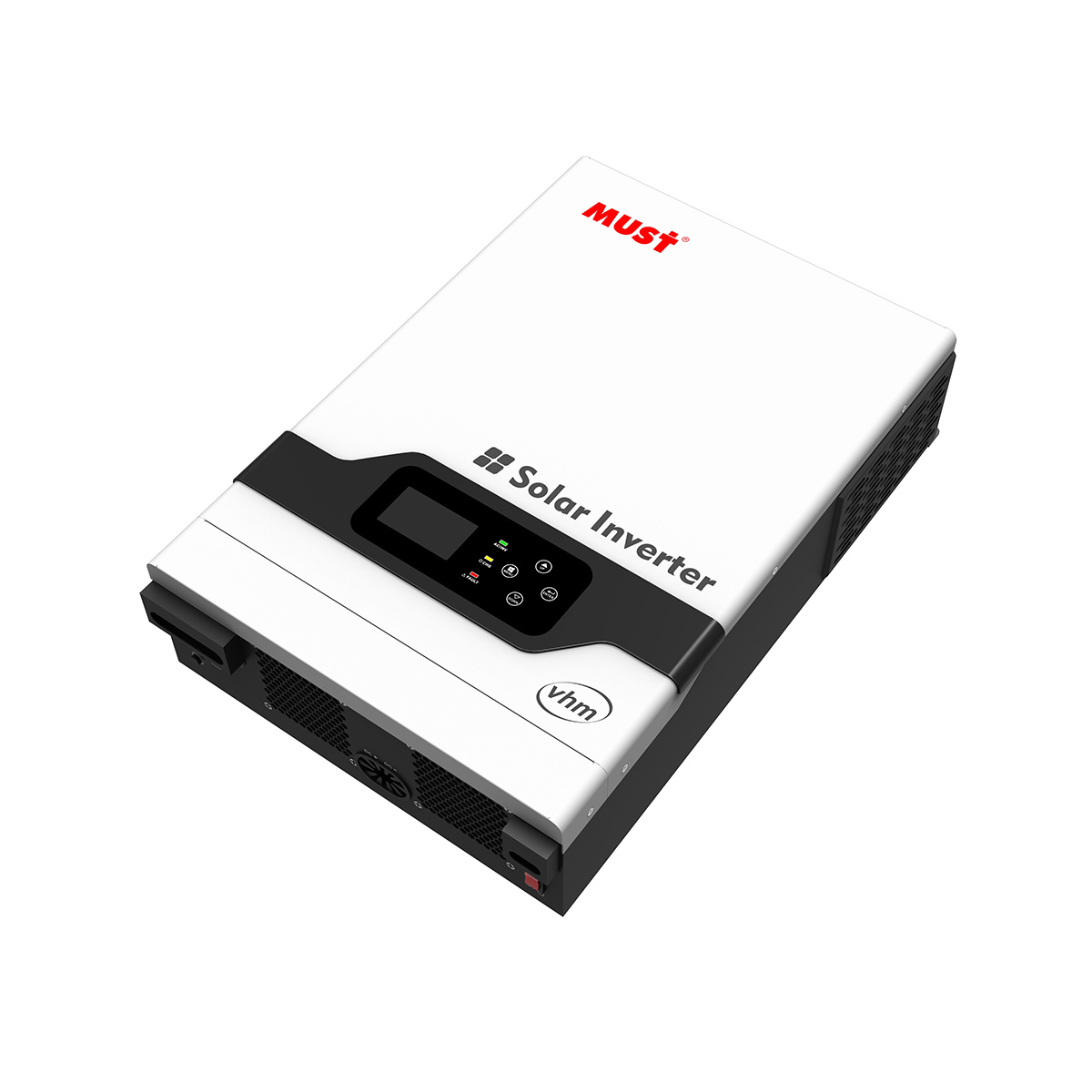

PV1800 VHM Series High Frequency Off Grid Solar Inverter (PV: 250V 3-5.5KW)

PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

Pure sine wave solar inverter
Max PV Array Open Circuit Voltage: 250V
Output power factor 1
Built-in 80A MPPT solar charger
Support parallel operation up to 3 units
Communication CAN/485 port for BMS (optional)
PV lithium battery activation function
WIFI remote monitoring (optional)
Compatible to generator

Get Pricing/Info

↓↓↓Installation Portfolio————

MODEL	PV18-3048 VHM	PV18-4048 VHM	PV18-5048 VHM	PV18-5548 VHM
Nominal Battery System Voltage	48VDC
INVERTER OUTPUT
Rated Power	3000W	4000W	5000W	5500W
Surge Power	6000W	8000W	10000W	11000W
Waveform	Pure Sine Wave
AC Voltage Regulation (Batt.Mode)	(220VAC~240VAC)±5%
Inverter Efficiency(Peak)	93%
Transfer Time	10ms (UPS / VDE4105) 20ms (APL)
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105)
Frequency Range	50Hz / 60Hz(Auto sensing)
BATTERY
Normal Voltage	48VDC
Floating Charge Voltage	54.8VDC
Overcharge Protection	60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	250VDC
PV Array MPPT Voltage Range	60~200VDC
Standby Power Consumption	2W
PV Input Power (STC)	4500W
Maximum Solar Charge Current	80A
Maximum Effciency	98%
Maximum AC Charge Current	60A
Maximum Charge Current	140A
MECHANICAL SPECIFICATIONS
Machine Dimensions(WHD)	329485134mm
Package Dimensions(WHD)	425575229mm
Net Weight(kg)	12
Gross Weight(kg)	13.5
OTHER
Humidity	5% to 95% Relatiy Humidity (Non-condensing)
Operating Temperature	0°C~50°C
Storage Temperature	-15°C ~60°C
