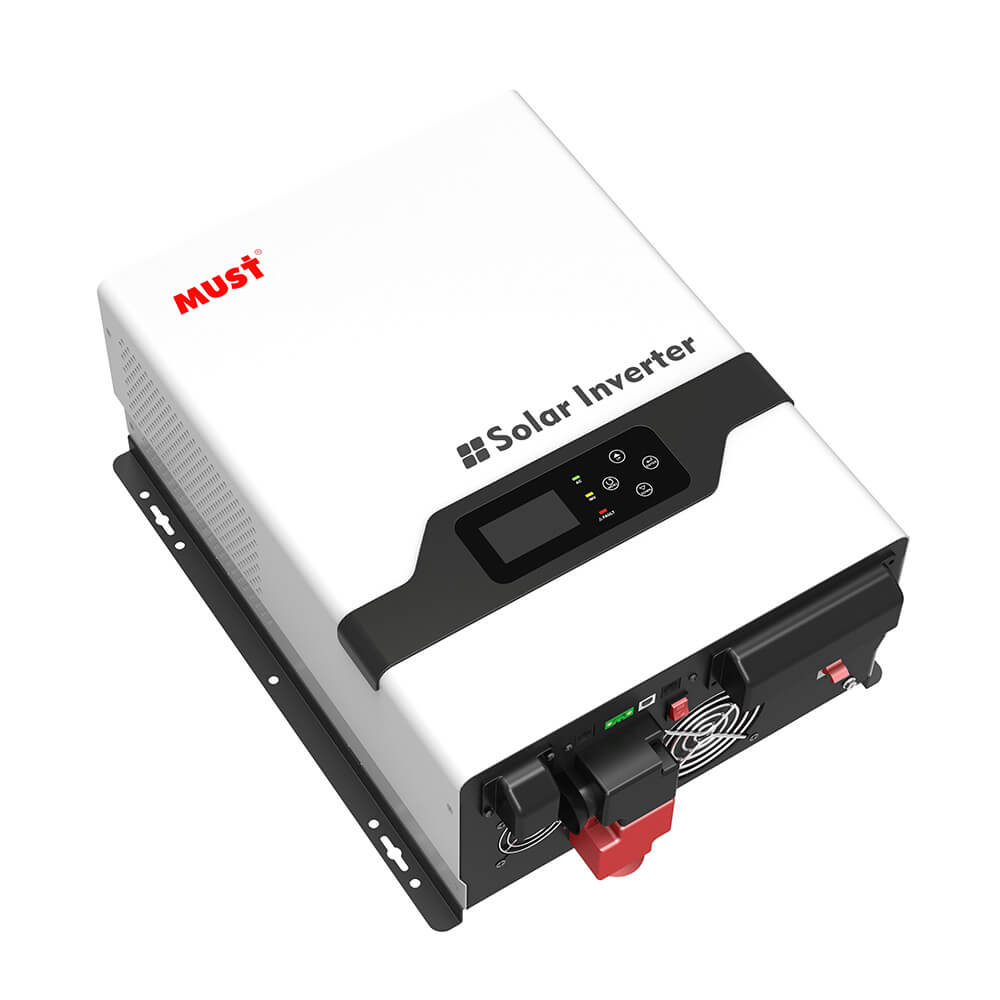

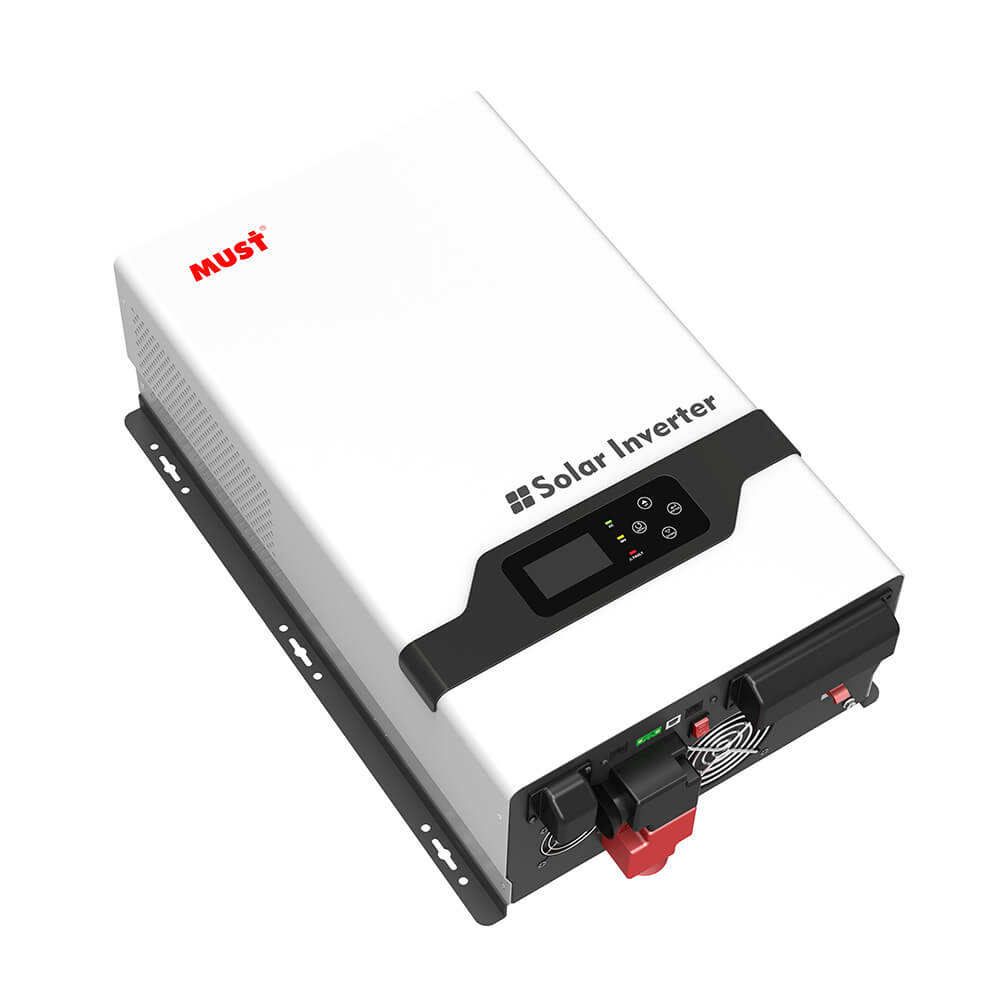

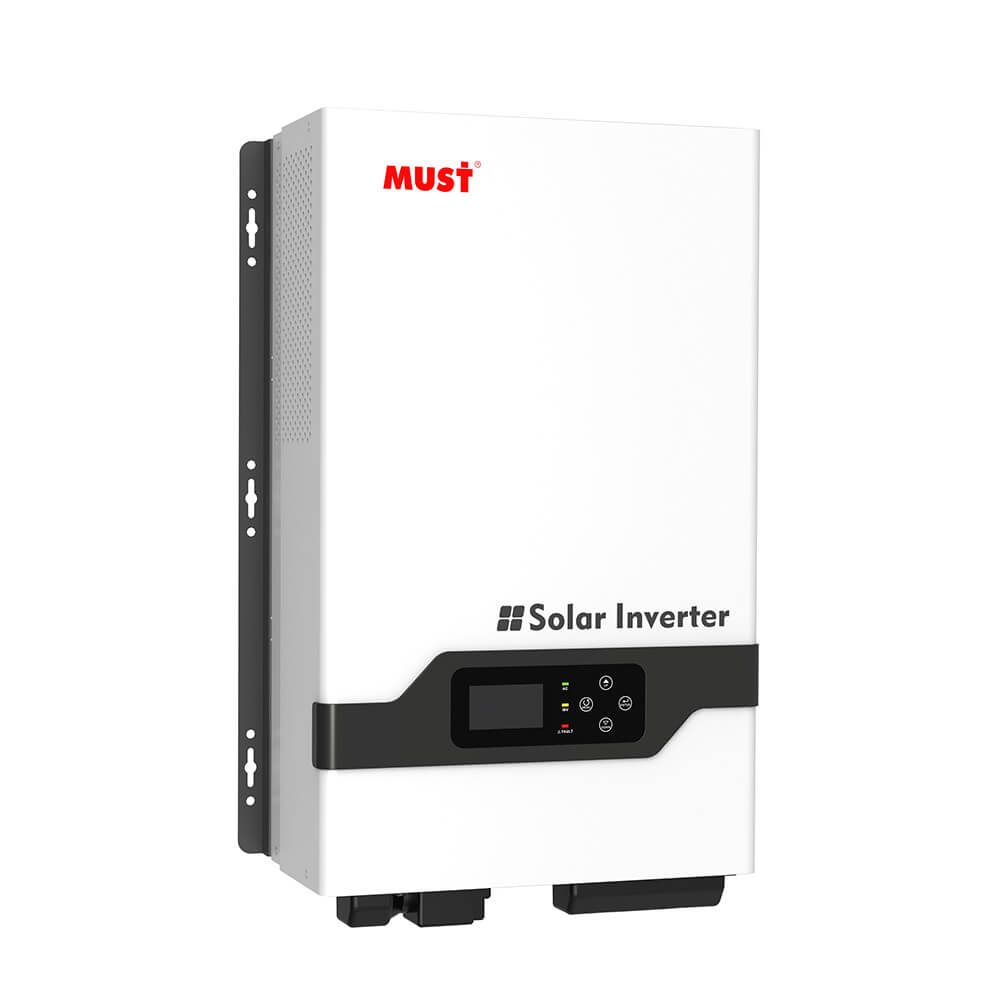

PV3300 TLV Series Low Frequency Split Phase Inverter Charger (AC: 110V/220V 1-6KW)
This split phase solar inverter PV3300 TLV series, capacity range from 1KW-6KW, DC 12V/24V/48V, it’s applicable to 110VAC/120VAC markets demands, which has AC output of single phase 110VAC/120V, split phase 220V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, it has built-in MPPT solar charge controller 80A, you can take use of sunshine freely and save electricity bills.
Features:
- Pure sine wave output
- Friendly user interface; MFD (multi-function display)
- 3 Steps charging
- Overload and short-circuit protection
- Set charging voltage/charging current.
- Battery low voltage shutdown point can be set to 10/10.5/11/11.5V
- Set utility priority/ Battery priority
- Set utility input wide/narrow range
- Inverter voltage can be set to 100/110/120V; frequency can be set to 50/60Hz
- Set utility charging on/off switch
- Built-in 80A MPPT charger
- Acid or Lithium Select
- WiFi port (optional)

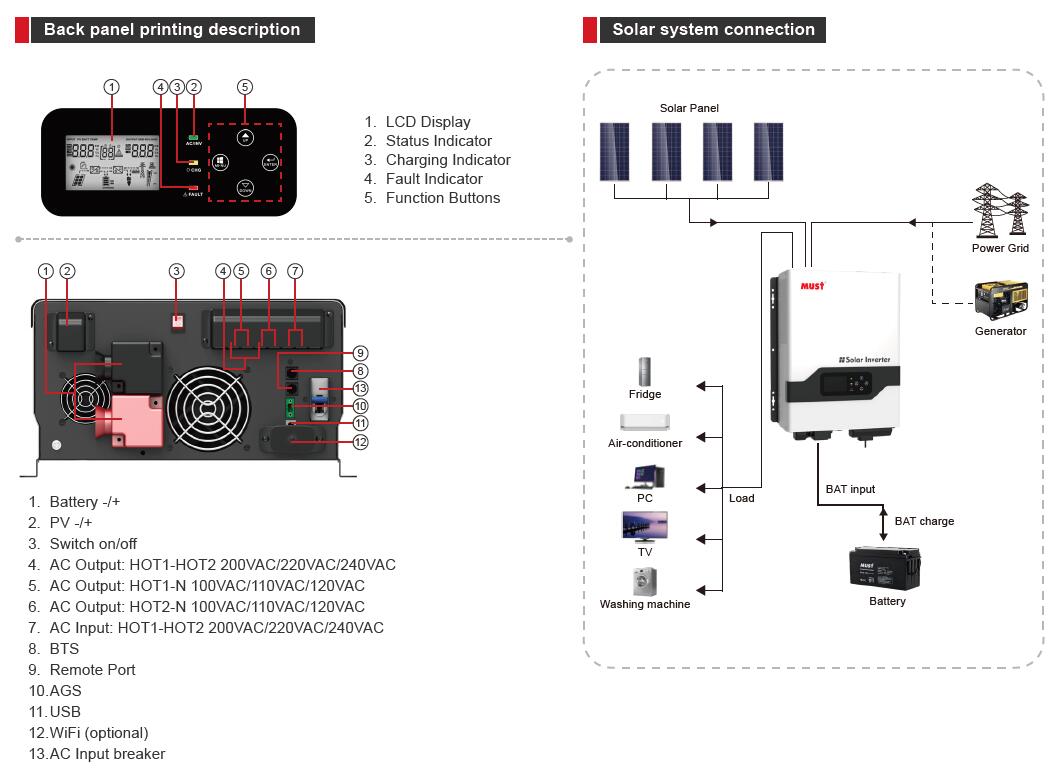

↓↓↓Installation Portfolio————
| MODEL | PV33- 1012 TLV | PV33- 1512 TLV | PV33- 1524 TLV | PV33- 2012 TLV | PV33- 2024 TLV | PV33- 3024 TLV | PV33- 3048 TLV | PV33- 4024 TLV | PV33- 4048 TLV | PV33- 5048 TLV | PV33- 6048 TLV | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inverter Output | ||||||||||||
| Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Power factor | 1 | |||||||||||
| Wave form | Pure sine wave | |||||||||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC, L+L) ±10% | |||||||||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) | |||||||||||
| Inverter efficiency (peak) | >85% | |||||||||||
| Line mode efficiency | >95% | |||||||||||
| Overload | 100%<Load<110% (alarm 5min then stop output ) / 110%<Load<125% (alarm 60s then stop output) / Load > 125% (alarm 10s then stop output ) | |||||||||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable of starting electric motor | 1HP | 1HP | 1.5HP | 1.5HP | 2HP | 3HP | ||||||
| Battery | ||||||||||||
| Battery voltage | 12VDC/24VDC | 24VDC/48VDC | 48VDC | |||||||||
| Minimum start voltage | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Low battery voltage cut off | 10V / 10.5V / 11V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Low battery voltage alarm | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| High battery voltage alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| High Battery Voltage Recover | (13.8-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||||
| Save mode | Load ≤50±20W(120V)/100±20W(220V) | |||||||||||
| AC Input Mode | ||||||||||||
| Input waveform | Pure sine wave | |||||||||||
| Nominal input voltage | 200Vac / 220Vac / 240Vac | |||||||||||
| Max input voltage | 270Vac MAX | |||||||||||
| Input frequency | 50Hz / 60Hz (auto sensing) | |||||||||||
| Efficiency (AC mode) | >95% (load, full battery) | |||||||||||
| Transfer time AC to DC | 15ms(typical) | |||||||||||
| Solar Charger | ||||||||||||
| Maximum PV Array Power | 1250W | 1250W | 2500W | 1250W | 2500W | 2500W | 5000W | 2500W | 5000W | 5000W | 5000W | |
| Maximum PV Charge Current | 80A | |||||||||||
| DC Voltage | 12V / 24V | 24V / 48V | 24V / 48V | |||||||||
| MPPT Range @ Operating Voltage | 16~95VDC @ 12V / 30~130VDC @ 24V | 30~130VDC @ 24V / 60~130VDC @48V | 60~130VDC @48V | |||||||||
| Maximum PV Array Open Circuit Voltage | 100±2Vdc / 145±2Vdc | 145±2Vdc | 145±2Vdc | |||||||||
| Maximum Efficiency | >98% | |||||||||||
| Standby Power Consumption | <2W | |||||||||||
| Charge Mode | ||||||||||||
| 12V | 30A | 45A | 60A | / | / | / | / | |||||
| 24V | 20A | 25A | 30A | 40A | 60A | / | / | |||||
| 48V | / | / | / | 20A | 30A | 35A | 40A | |||||
| Min charge current 10A. Change by every 5A | ||||||||||||
| Dimensions | ||||||||||||
| Dimensions (W*H*D) | 277*196*466mm | 277*186*621mm | ||||||||||
| Ship Dimensions (W*H*D) | 376*306*592mm | 376*296*747mm | ||||||||||
| Net Weight (Solar CHG)(kg) | 17.2 | 17.7 | 21.8 | 20.7 | 25.2 | 25.5 | 38.9 | 36.5 | 38 | 39 | ||
| Shipping Weight (Solar CHG)(kg) | 20 | 20.7 | 24.8 | 23.5 | 28.2 | 28.2 | 43 | 40.7 | 39.2 | 40.2 | ||
| Warranty | 1year | |||||||||||
