Low Frequency Power Inverter
Low Frequency Power Inverter
RP-AVR Series(3-6kW)
LCD display Remote（optional） Overview Connection
Features:
- Pure sine wave inverter
- output power factor 1
- It has automatic voltage regulator (AVR)，providing wide and stabile AC range
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/Battery input priority via LCD setting Configurable power saving mode via
- LCD setting
- Compatible with generator power
- Dry contact port for generator to realize mutual control by generator and utility
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Smart fan running control to extend service life and reduce noise color LCD display
- Supports the use lithium batteries
- RS232 communicate port and remote control panel optional

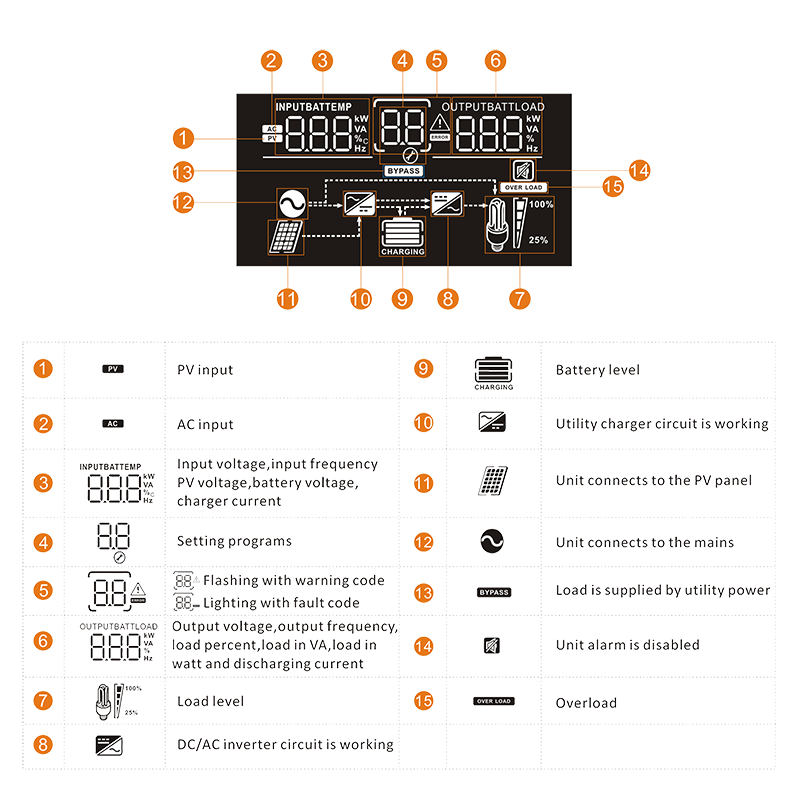

LCD display

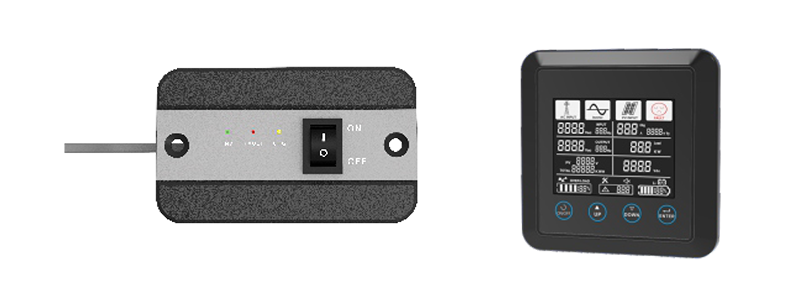

Remote（optional）
Overview

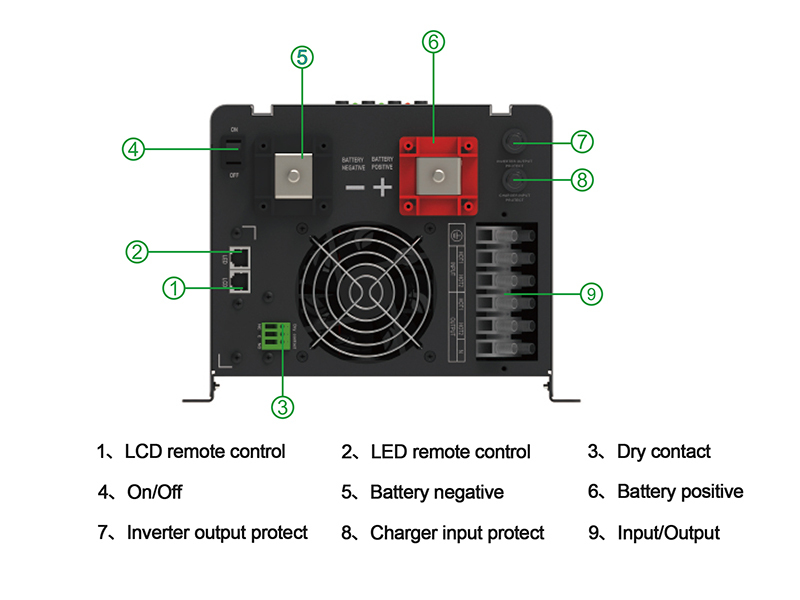

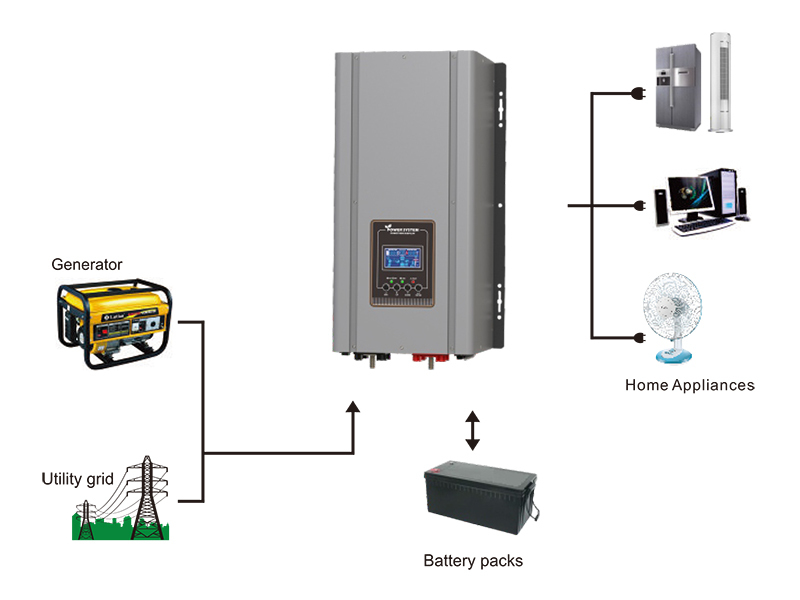

Connection
| Model | 3012E | 3024E | 3048E | 4024E | 4048E | 5024E | 5048E | 6024E | 6048E |
| Rated power | 3000W | 4000W | 5000W | 6000W | |||||
| Input | |||||||||
| Voltage | 200VAC/210VAC/220VAC/230VAC/240VAC | ||||||||
| AVR input voltage range | -30%~+20% | ||||||||
| Voltage | 100VAC/105VAC/110VAC/115VAC/120VAC | ||||||||
| AVR input voltage range | -30%~+20% | ||||||||
| Frequency range | 40~90Hz | ||||||||
| Efficiency | >95%，AVR mode>92% | ||||||||
| Output | |||||||||
| Voltage | 100VAC/105VAC/110VAC/115VAC/；120VAC:200VAC/210VAC/220VAC/230VAC/240VAC | ||||||||
| AVR output range voltage | output voltage ± 10% | ||||||||
| Surge power | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Efficiency (peak) | 91% | ||||||||
| Transfer time | <10ms | ||||||||
| Waveform | Pure sine wave | ||||||||
| Battery | |||||||||
| Battery voltage | 12 | 24 | 48 | 24 | 48 | 24 | 48 | 24 | 48 |
| Charge current | 75A | 50A | 25A | 70A | 35A | 75A | 45A | 75A | 50A |
| Over voltage protection | 16.5VDC for 12VDC (*2for24VDC；*4for48VDC) | ||||||||
| Battery low voltage alarm | 10.5VDC for 12VDC (*2for24VDC; *4for48VDC) | ||||||||
| Battery low voltage shutdown | 10VDCfor12VDC (*2for24VDC; *4for49VDC) | ||||||||
| Protecting & port | |||||||||
| Protection | Over charging，over temp ，over battery voltage，over load，short circuit | ||||||||
| Communication interface | 1.LCD remote control 2.LED remote control | ||||||||
| Cooling | Intelligent fan | ||||||||
| Display | Color LCD | ||||||||
| Specification setting | By LCD or Position Machine：Charging Current Battery Type, Input Voltage, Output Frequency. Wide and Narrow range of AC input voltage, Power saver Model, AC Priority or Battery Priority: | ||||||||
| Physical | |||||||||
| Dimension. D*W*H (mm) | 500*258*190 | 574*345*197 | |||||||
| Net weight (kg) | 25.2 | 34.4 | 38.2 | 41.6 | |||||
| Environment | |||||||||
| Humidity | 5-95% Relative Humidity (Non-condensing) | ||||||||
| Operating temperature | -10℃ to 50°C | ||||||||
| Storage temperature | -15℃ to 60℃ | ||||||||
