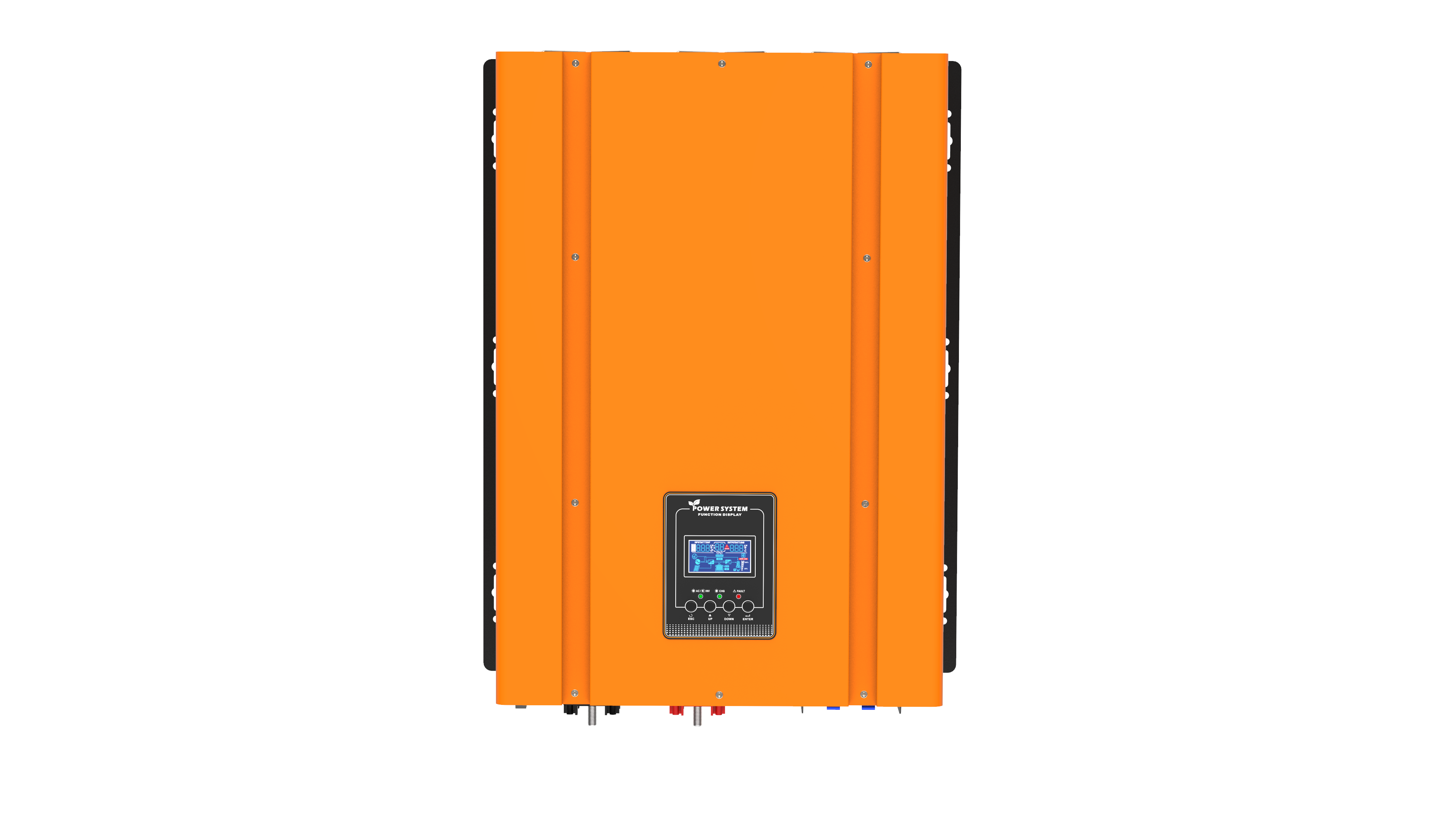

Low Frequency Power Inverter
Low Frequency Power Inverter
RP Series (8-12kW)
LCD display Remote（optional） Overview Connection
Features:
- Pure sine wave inverter
- Output power factor 1
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/battery input priority via LCD setting
- Compatible with generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Color LCD display
- Supports the use lithium batteries
- Smart fan running control to extend service life and reduce noise
- Supports the use lithium batteries
- Wave by wave phase detection，more stable and reliable
- RS232 communicate port and remote control panel optional

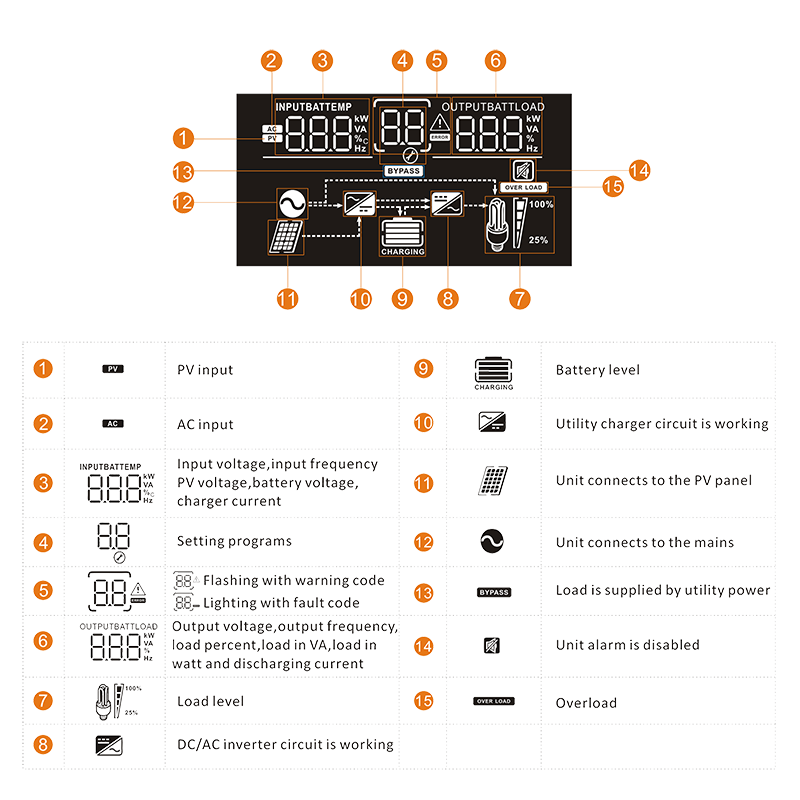

LCD display

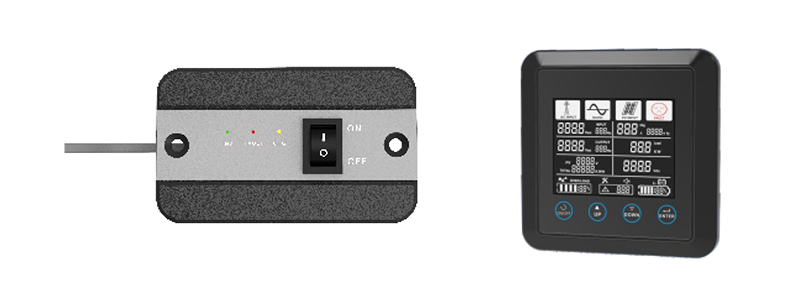

Remote（optional）

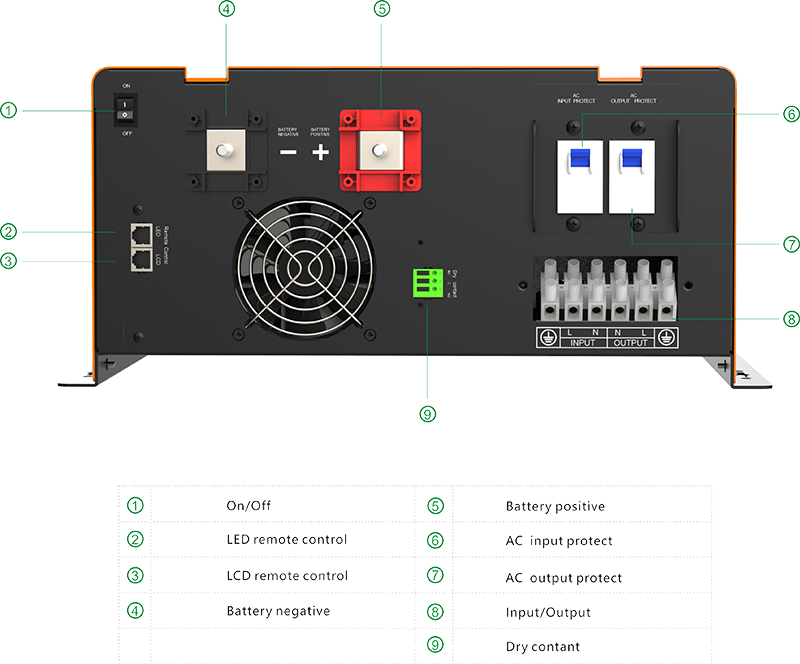

Overview

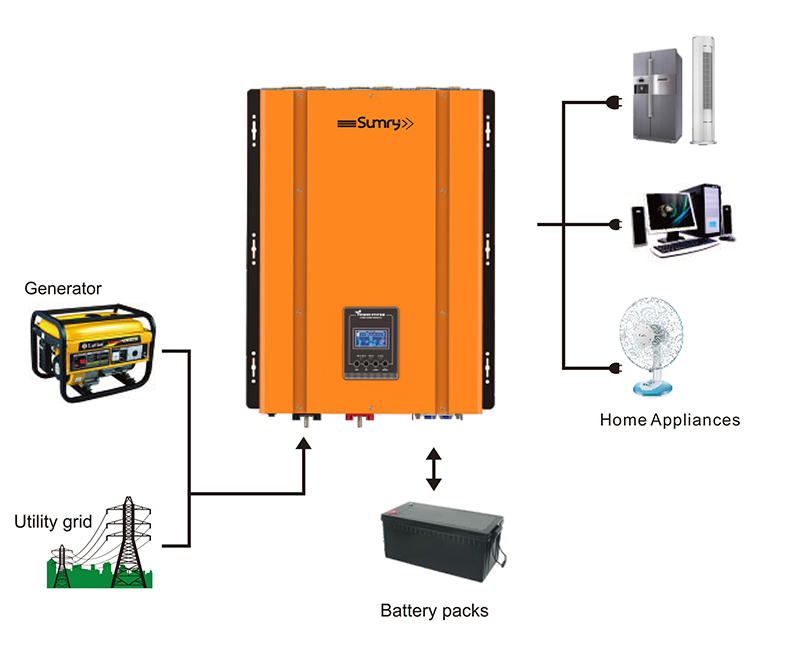

Connection
| MODEL | RP 8000 | RP 10000 | RP 12000 | |||
| Rated Power | 8000W | 10000W | 12000W | |||
| INPUT | ||||||
| Voltage | 100/110/120VAC；220/230/240VAC | |||||
| Selectable Voltage Range | Wide Range ：75VAC~138VAC；155VAC~275VAC（for home appliances） Narrow Range ：82VAC~138VAC ; 165VAC~275VAC （for personal computer） | |||||
| Frequency | 40-70Hz (50Hz/60Hz) | |||||
| OUTPUT | ||||||
| AC Voltage Regulation (Batt Mode) | 220/230/240VAC (±10V) | |||||
| Surge Power | 24KVA | 30KVA | 36KVA | |||
| Efficiency (Peak) | 90% | |||||
| Transfer Time | ＜20ms | |||||
| Wave from | Pure sine wave | |||||
| BATTERY | ||||||
| Battery Voltage | 48V | 96V | 48V | 96V | 48V | 96V |
| Charge Current. | 70A | 35A | 75A | 40A | 75A | 50A |
| Fast Charge Voltage | 57.2VDC for 48V (*2 for 96V) | |||||
| Float Charge Voltage | 54.8VDC for 48V (*2 for 96V) | |||||
| Battery Low Voltage Alarm | 42.0VDC for 48V (*2 for 96V) | |||||
| Over Voltage Protect | 66.0VDCfor 48V (*2 for 96V) | |||||
| Battery Low Voltage Shutdown | 40.0VDC for 48V (*2 for96V) | |||||
| Protection | Overcharge，Overtemperature，over battery voltage，over load，short-circuit | |||||
| Operating Environment Temperature | 55℃ | |||||
| Cooling | Intelligent Fan | |||||
| Display | LCD | |||||
| Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||||
| PHYSICAL | ||||||
| Dimension，(D*W*H)mm | 584*425*180 | |||||
| Net Weight (kg) | 58.7/59 | 67/66.5 | 71.8/72 | |||
| ENVIROMENT | ||||||
| Humidity | 5~95% Relative humidity (No-condensing) | |||||
| Operating Temperature | -10~50℃ | |||||
| Storage Temperature | -10~60℃ | |||||
