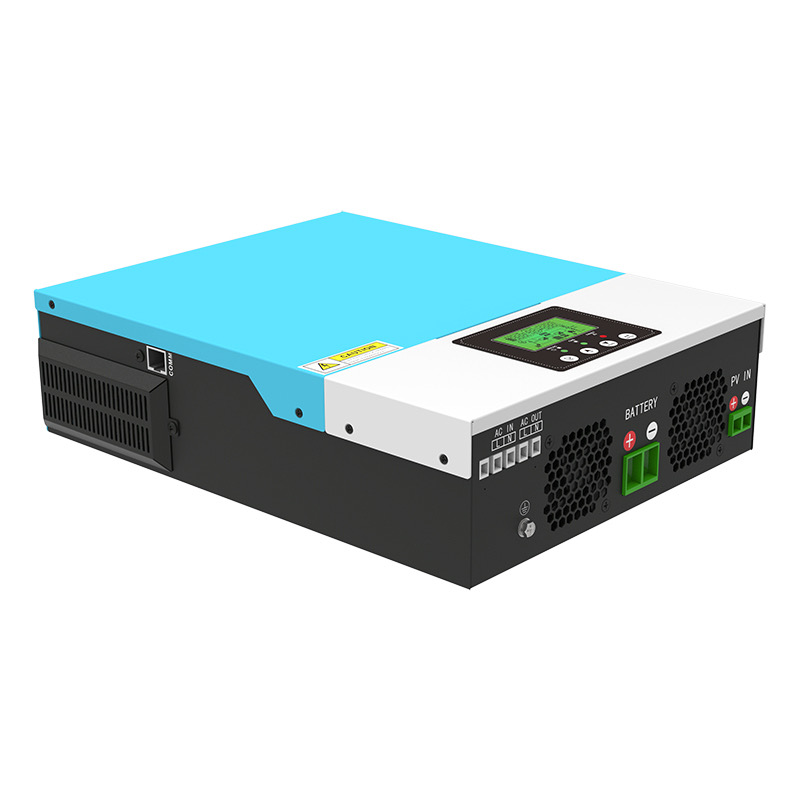

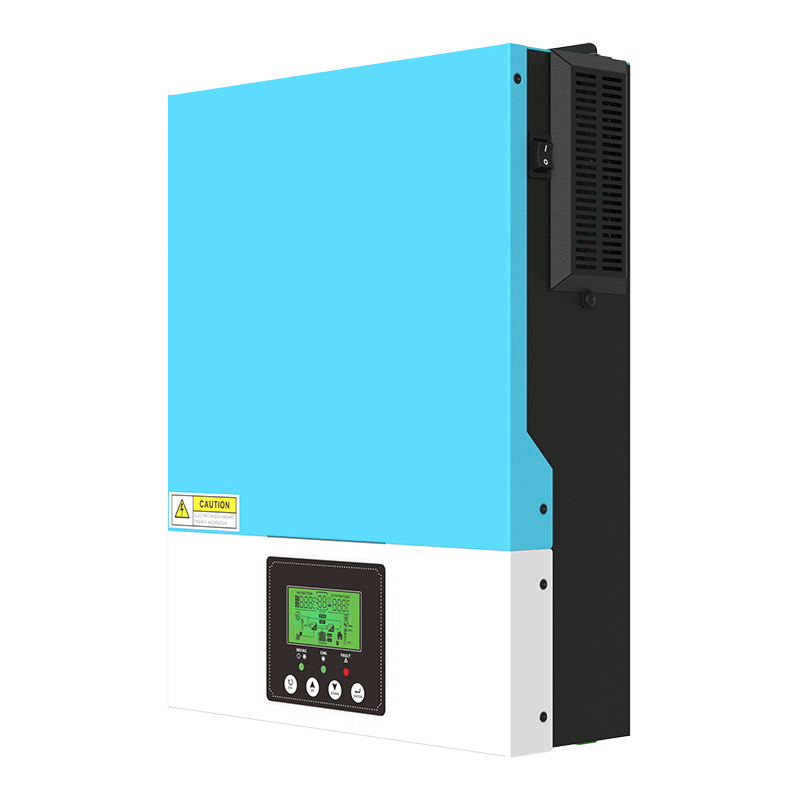

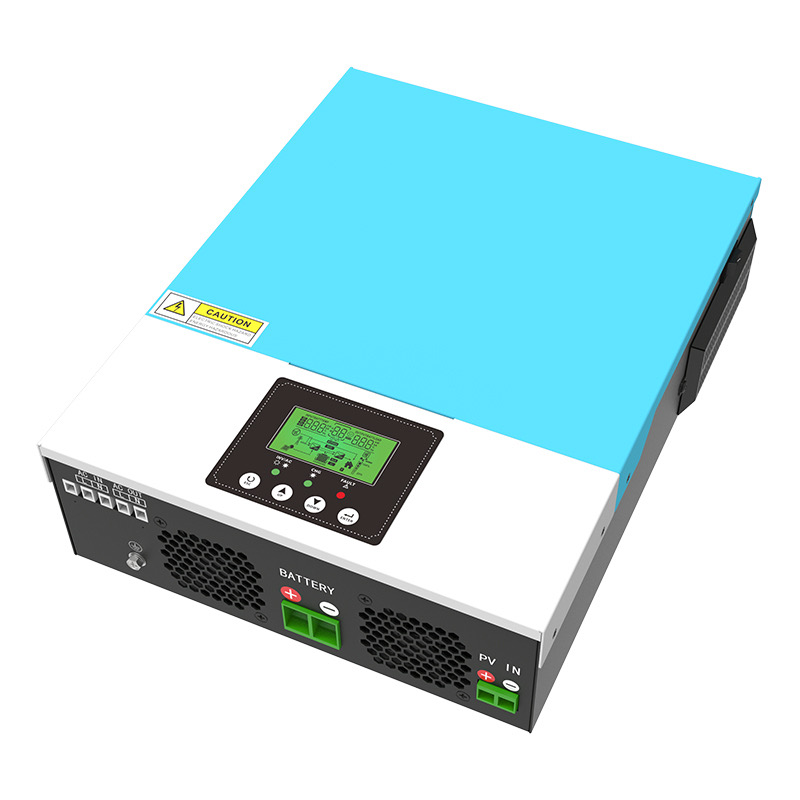

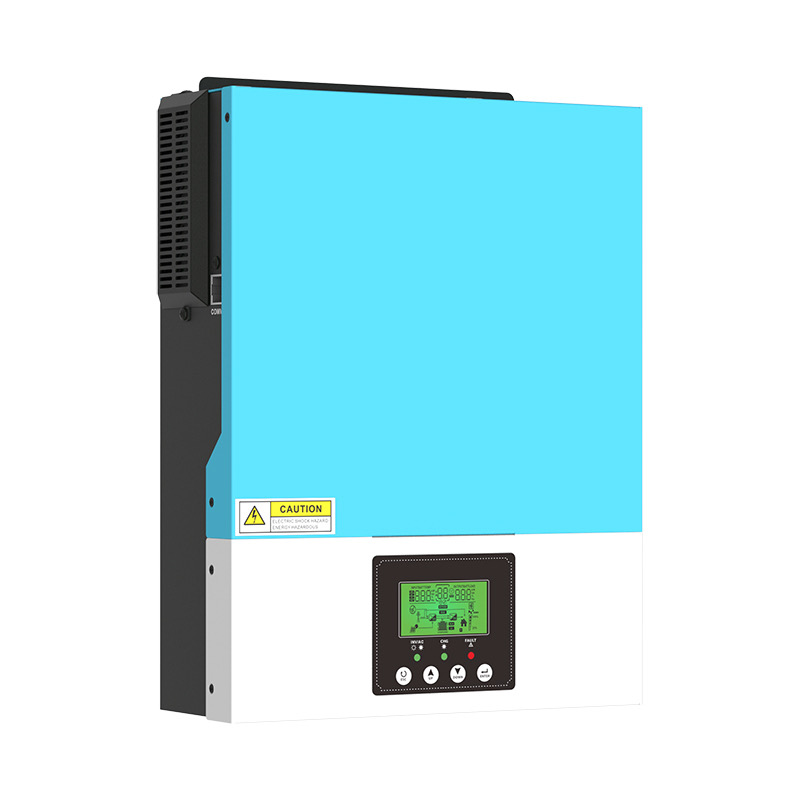

Off Grid Solar Inverter
Off Grid Solar Inverter
SM Series (1.5-3kW)
123123
Features:
- Pure sine wave solar inverter
- WIFI&GPRS available for IOS and android
- Buit-in 80A MPPT solar charger
- Solar energy is provided directly to the load first
- Buit-in anti-dusk kit for harsh environment（optional）
- Compatibe with lithium-ion battery
- High PV input voltage range（90-450VDC）
- Smart battery charge design to optimize battery life
- Can meet the rich custom needs of customers
123123
| MODEL | SM-1500-12 | SM-2000-12 | SM-2400-24 | SM-3200-24 |
| Rated Power | 1500VA/1500W | 2000VA/1600W | 3000VA/2400W | 3200VA/3000W |
| INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 170-280VAC（for personal computers）90-280VAC（for home appliances） | |||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
| Surge power | 3000VA | 4000VA | 4800VA | 6400VA |
| Efficiency(Peak) PV to INV | 97% | |||
| Efficiency(Peak) BAT to INV | 94% | |||
| Transfer Time | 10ms (for personal computers)20ms (for home appliances) | |||
| Wave form | Pure Sine Wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 12VDC | 24VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | ||
| Overcharge Protection | 16VDC | 33VDC | ||
| Maximum charge current | 60A | |||
| SOLAR CHARGER | ||||
| MAX.PV Array Power | 2000W | 3000W | ||
| MPPT Range@ Operating Voltage | 90-430VDC | |||
| Maximum PV Array Open Circuit Voltage | 450VDC | |||
| Maximum Charging Current | 80A | |||
| Maximum Efficiency | 98% | |||
| PHYSICAL | ||||
| Dimension.D*W*H(mm) | 348*270*95 | |||
| Net Weight (kg s) | 4kg | 5kg | ||
| Communication Interface | RS232(Standard)GPRS/WIFI(Optional) | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
