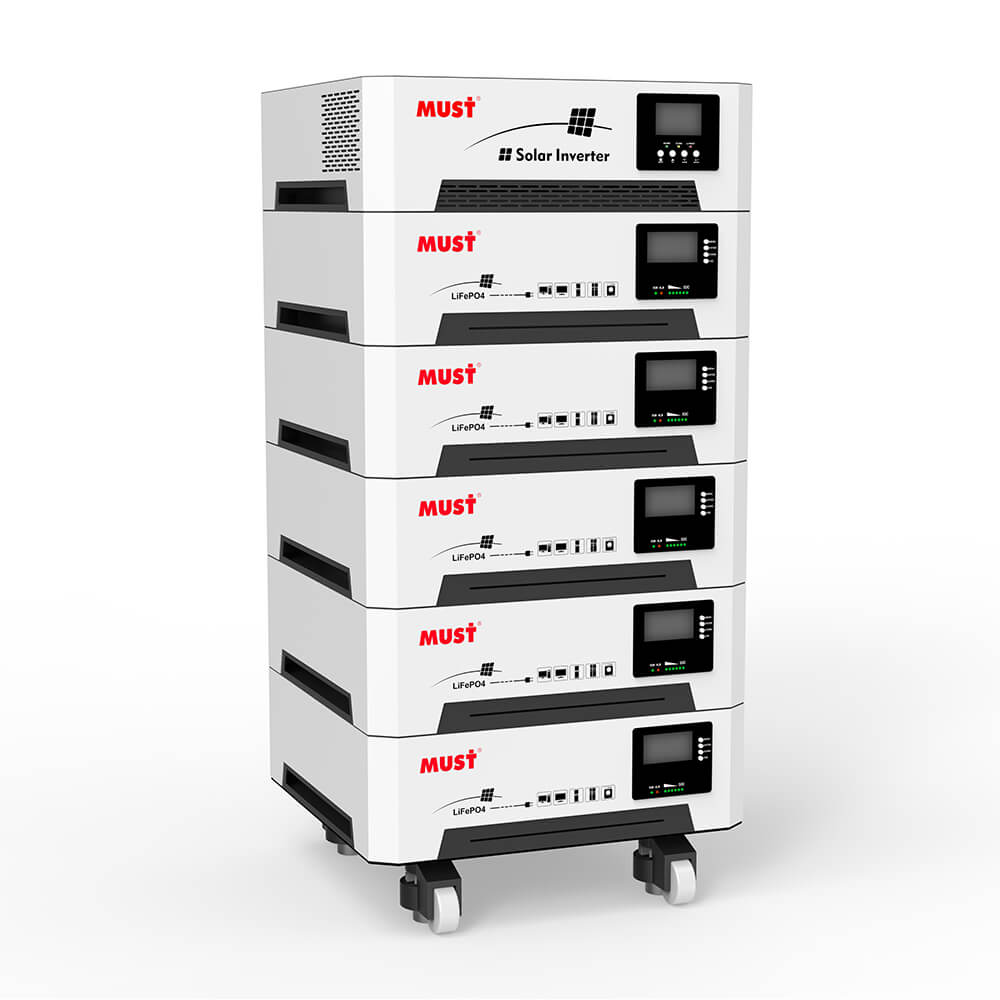

Solar Inverter With Lithium Battery Storage System HBP1800 PRO Series (5.2KW)
HBP1800 PRO energy storage system ESS solution, including 5kw 48vdc solar inverter and a lithium battery storage with 5kwh-25kwh energy optional. It is a one-stop service system can manage your solar home battery storage system more conveniently. Flexible modular system can be designed basedon house daily consumption.
Features:
- Stacked movable energy storage systems.
- Rechargeable lithium batteries use safe lithium cell LiFePO4.
- The intelligent BMS system adopts the latest battery communication system.
- Flexible investment with 5.12kWh modular design, scalable from 5.12kWh to 25.6kWh.
- The battery capacity can be increased freely and flexibly according to the situation of home use.
- Reduce electricity bills and increase your energy needs for electrical self-sufficiency.

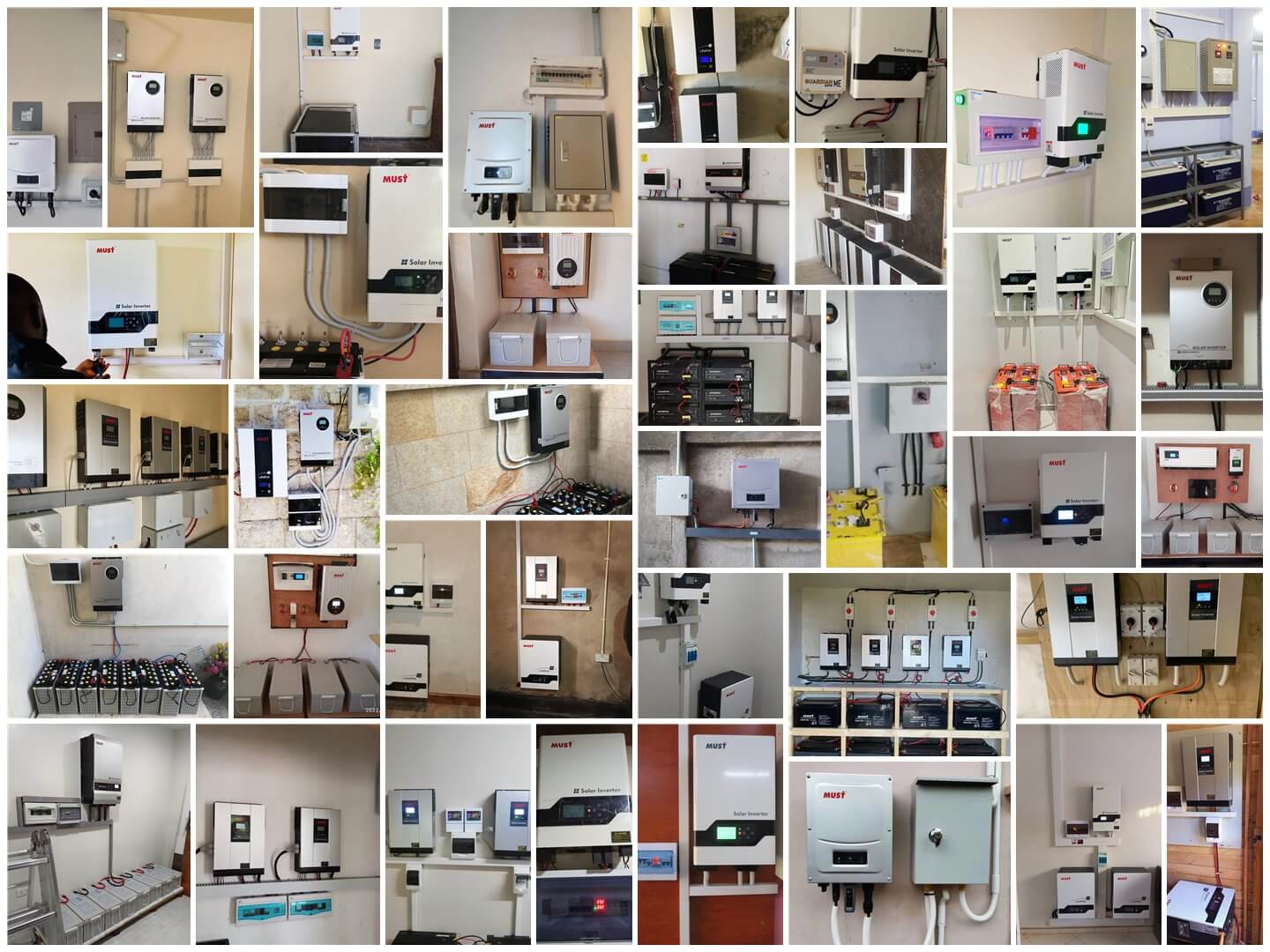

↓↓↓Installation Portfolio————
| MODEL | HBP18-52481 PRO | HBP18-52482 PRO | HBP18-52483 PRO | HBP18-52484 PRO | HBP18-52485 PRO | |
|---|---|---|---|---|---|---|
| Inverter | ||||||
| Rated power | 5200W | |||||
| Output voltage waveform | Pure sine wave | |||||
| Output voltage regulation | 230Vac±5% | |||||
| Output frequency | 50Hz or 60Hz | |||||
| Peak efficiency | 93% | |||||
| Nominal DC input voltage | 48Vdc | |||||
| Standby Consumption | < 25W | |||||
| PV Input | ||||||
| Max solar power input | 6000W | |||||
| PV max charging current | 80A | |||||
| Combined charging current | 80A | |||||
| Max efficiency | 98.0% max | |||||
| PV array open circuit voltage | 450VDC | |||||
| PV Array MPPT Voltage Range | 150V-430VDC | |||||
| AC Input | ||||||
| AC input voltage | 230Vac ±5% | |||||
| Acceptable input voltage range | 170~280VAC | |||||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |||||
| AC Charge | ||||||
| Charging current @ Nominal input voltage | 60A | |||||
| Charging Algorithm | 4-step (Li) | |||||
| Output | ||||||
| AC output | 230Vac (Terminal) | |||||
| Lithium Battery | ||||||
| Energy | 5120Wh | 10240Wh | 15360Wh | 20480Wh | 25600Wh | |
| Nominal voltage | 51.2V | |||||
| Battery capacity | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah | |
| Standard charging and discharge current | 100A | |||||
| Maximum continuous charging & discharge current | 100A | |||||
| Operation ambient temperature | Charge | 0~45℃ | ||||
| Discharge | -20~55℃ | |||||
