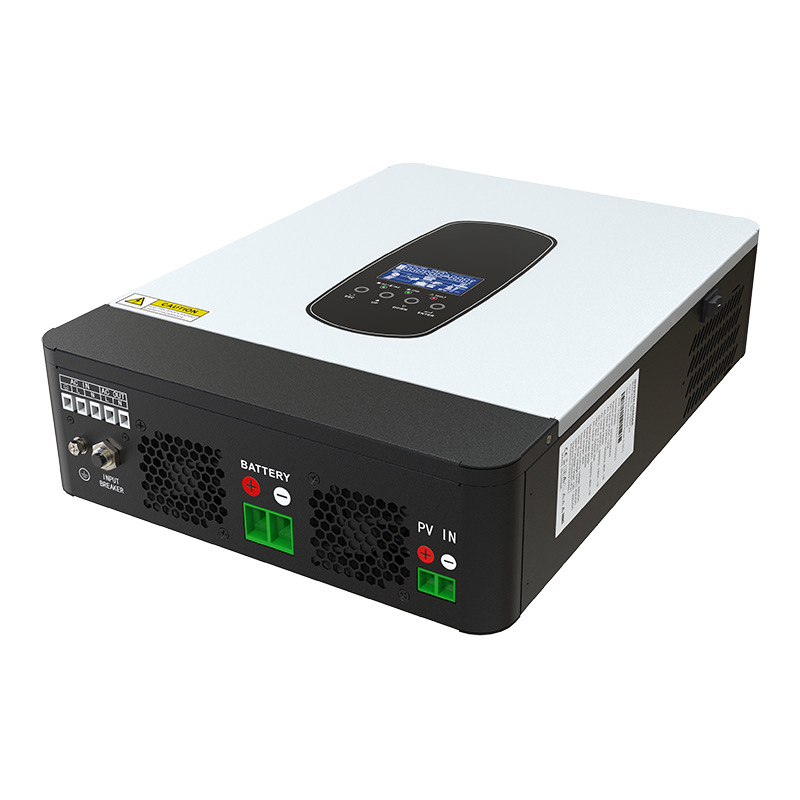

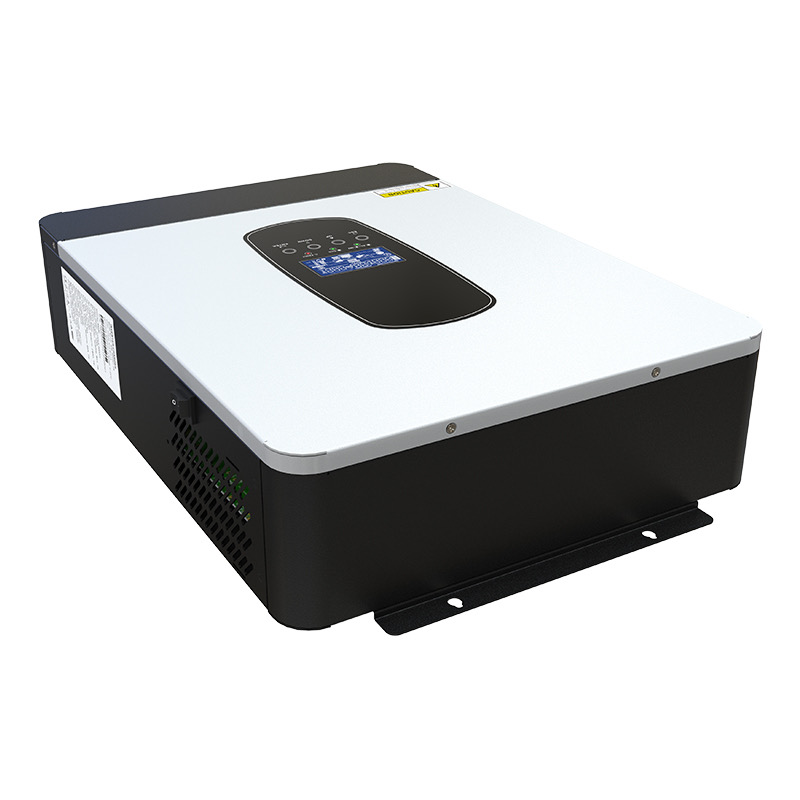

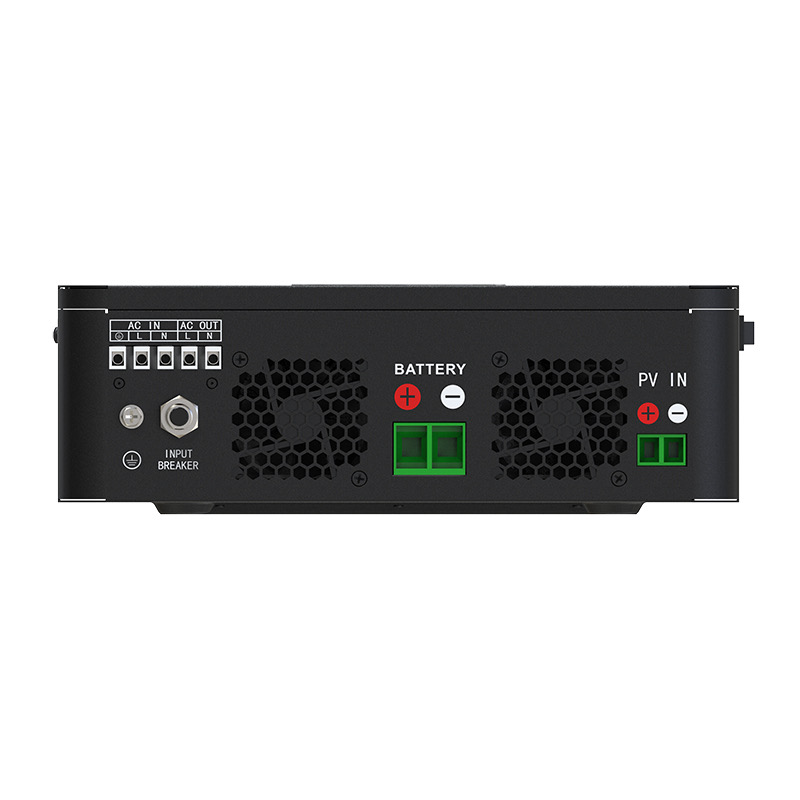

Off Grid Solar Inverter
Off Grid Solar Inverter
SP Series(2.2-7kVA)
Features:
- Pure sine wave inverter
- Programmable supply priority for PV , battery or Grid
- High PV input voltage range(55~450VDC)
- Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge
- Compatibe with lithium-ion battery
- Support BMS communication with Lithium battery
- Smart battery charge design to optimize battery life
- Overload,high temperature,inverter output short circuit protection
- Cold start function
- Intelligent fan speed adjustment
- Built-in anti-dusk kit for harsh enviromen(optional)
- WIFI&GPRS available for IOS and android
| MODEL | SP-2200 | SP-3200 | SP-4000 | SP-7000 |
| Rated Power | 2200VA/1800W | 3200VA/3000W | 4000VA/3600W | 7000VA/6200W |
| INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 170-280VAC(for personal computers)90-280VAC(for home appliances) | |||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
| Surge power | 4400VA | 6400VA | 8000VA | 14000VA |
| Transfer Time | 10ms (for personal computers)20ms (for home appliances) | |||
| Wave form | Pure Sine Wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC |
| Overcharge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC |
| Maximum charge current | 60A | 80A | ||
| SOLAR CHARGER | ||||
| MAX.PV Array Power | 2000W | 3000W | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 55-450VDC | |||
| Maximum PV Array Open Circuit Voltage | 450VDC | |||
| Maximum Charging Current | 80A | 110A | ||
| Maximum Efficiency | 98% | |||
| PHYSICAL | ||||
| Dimension.D*W*H(mm) | 405*286*98mm | 423*290*100mm | 423*310*120mm | |
| Net Weight (kgs) | 4.5kg | 5.0kg | 7.0kg | 8.0kg |
| Communication Interface | RS232/RS485(Standard)GPRS/WIFI(Optional) | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(No-condensing) | |||
| Operating Temperature | -10℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
