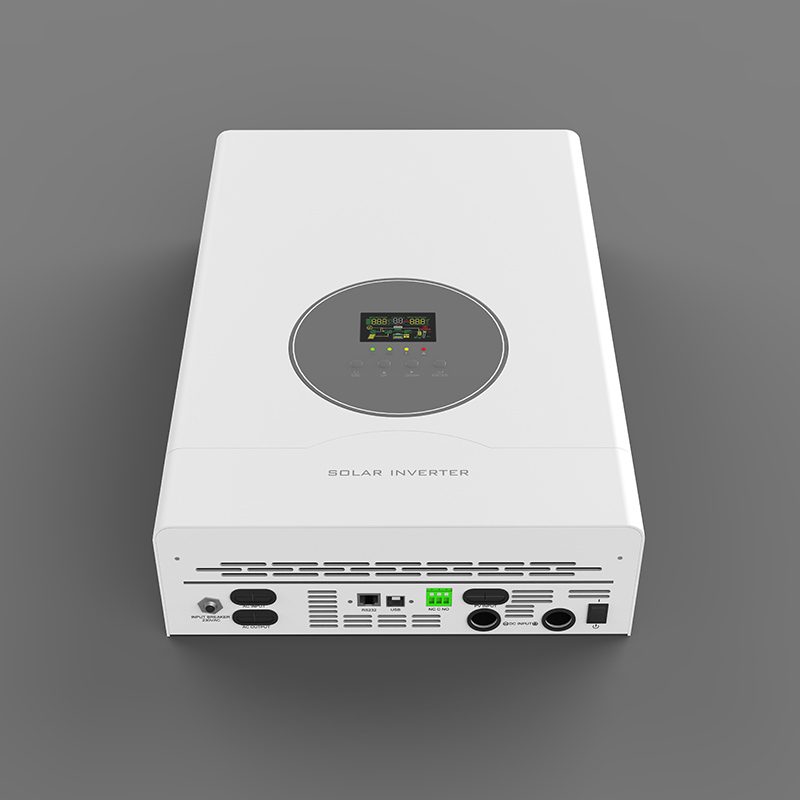

Low Frequency Power Inverter
Low Frequency Power Inverter
UD Series(6-15kVA)
Features:
- Pure sine ware output
- MPPT Efficiency max 98%
- DC Start & Automatic Self-Diagnostic Function
- Inbuit with transformer which is strong load ability
- High Efficiency Design & ”Power Saving Mode” to Conserve Energy
| Features： Pure sine ware output DC Start & Automatic Self-Diagnostic Function Strong Load ability with inbuilt transformer 120A MPPT solar charge controller Efficiency max 98% PV Max. Power 6400W High Efficiency Design & ”Power Saving Mode” to Conserve Energy Auto restart when Ac is recovering Smart battery charger design for optimized battery performance Selectable charging current based on applications AC input/DC input/Solar input optional priority Auto Restart Voltage | ||||
| Capacity(VA) | V6348VA | V8048VA | V10000VA | V12500VA |
| Rated Power | 5000W | 6400W | 8000W | 10000W |
| Voltage(DC) | 48V | |||
| Nominal Voltage | 220VAC | |||
| Voltage Range | 154-265VAC ;185-264VAC ( selectable) | |||
| Frequency | 50-60HZ Auto sensing | |||
| Voltage | 220VAC | |||
| Frequency | 50/60HZ | |||
| Waveform | Pure Sine Wave | |||
| Transfer Time (AC to DC) | <8ms | |||
| Transfer Time (DC to AC) | <8ms | |||
| Output Voltage Regulation | 土10% | |||
| Bypass Mode | Yes | |||
| Saver Mode | Yes | |||
| Efficiency | >98% | |||
| Input Protection | Circuit Breaker | |||
| Output Protection | Circuit Breaker | |||
| Battery Type | LITHIUM/VRLA / GEL /GEL DEEP CYCLE | |||
| Charging Current | 36A | 40A | 50A | 60A |
| Low Level disconnect | 40V -42V | |||
| Maximum PV array power | 48V: MPPT 150VDC | |||
| Maximum solar charge current | 120A | |||
| Maximum solar PV Watt | 120A : 6400W | |||
| LCD indicator | AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc. | |||
| LED indicator status | AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red | |||
| LOW battery alarm | Audible alarm-5 seconds beeping | |||
| Overload alarm | Audible alarm- continuous beeping | |||
| Fault | Audible alarm- continuous beeping | |||
| Temperature | 0-60℃ | |||
| Humidity | —10℃~90℃ Non condensing | |||
| Accoustic Noise(db) | <55dB | |||
| Dimension | 565*400*185mm | |||
